Chapter 4: Connecting the AC and the Strings

to the Safety Switch

The Safety Switch disconnects all ungrounded DC conductors in compliance with the

National Electric Code (NEC; Specifically NEC690.35, which addresses ungrounded PV

arrays). The Safety Switch is rated to the maximum operating conditions of the inverter.

Inverters of different models are equipped with different sizes/ types of terminal blocks.

The following figures illustrate several of the available Safety Switches.



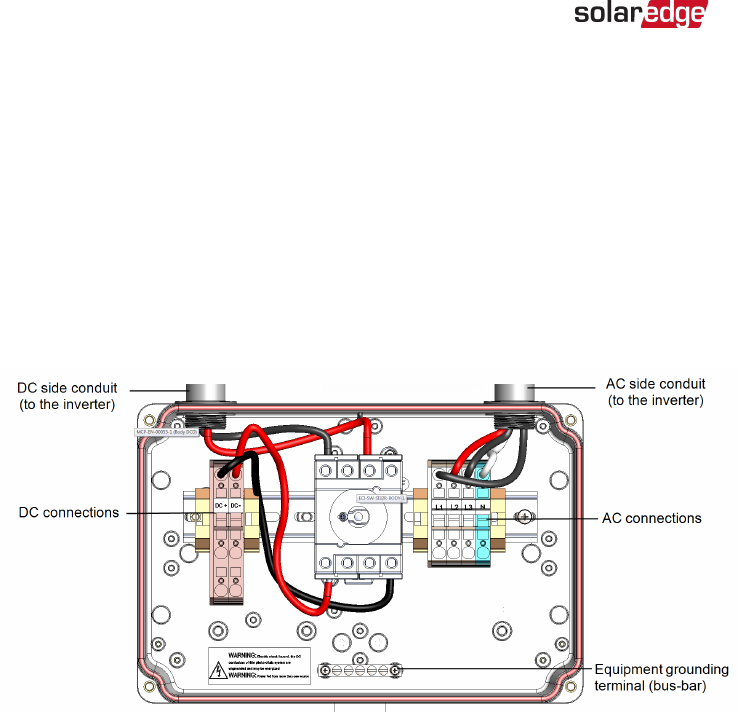

Figure 17: Inside the Safety Switch for three phase inverters

(9kW, 10kW, 20kW)

-Three Phase System Installation Guide MAN-01-00002-4.3

42 Chapter 4: Connecting the AC and the Strings to the Safety Switch
