Supported ACGrids

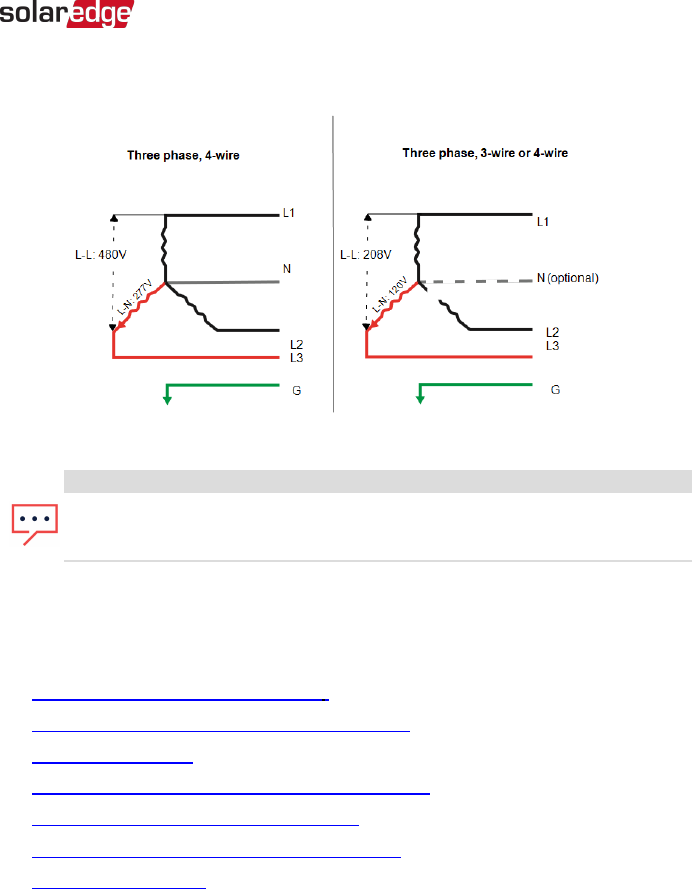

Figure 2: AC grids supported by SolarEdge three phase inverters
NOTE
Grid support depends on the inverter model. Some three phase inverters
support the 208V 3-wire grid. Refer to
Setting the Inverter to Support 208V 3-
wire Grid
on page 44.
Installation Procedure
The following is the procedure for installing and setting up a new SolarEdge site. Many
of these also apply to modification of an existing site.
1. Connecting Power Optimizers in Strings, page 28.
2. Recording power optimizer serial numbers (optional), page 58.
3. Mounting the inverter, Page 36.
4.
Connecting the strings and the AC to the Safety Switch, page 42.
5.
Commissioning and activating the installation, page 52.
6. Connecting the inverter to the monitoring platform, page 59.
7.
Configuring the inverter, page 60.
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
