Appendix E: Determining the Circuit Breaker

Size

Revision History

Version 1.0 February 2019: first release

Introduction

Inverters should be protected by circuit breakers. This document describes how to

determine which circuit breaker to use in three phase commercial installations.

Using Transformers in Commercial Three Phase

Inverter Installations

Using transformers in a commercial installation is optional. In most cases a transformer

is used to connect the installation to the medium voltage power grid. The following

figure illustrates a typical transformer and commercial three phase inverter installation

topology.

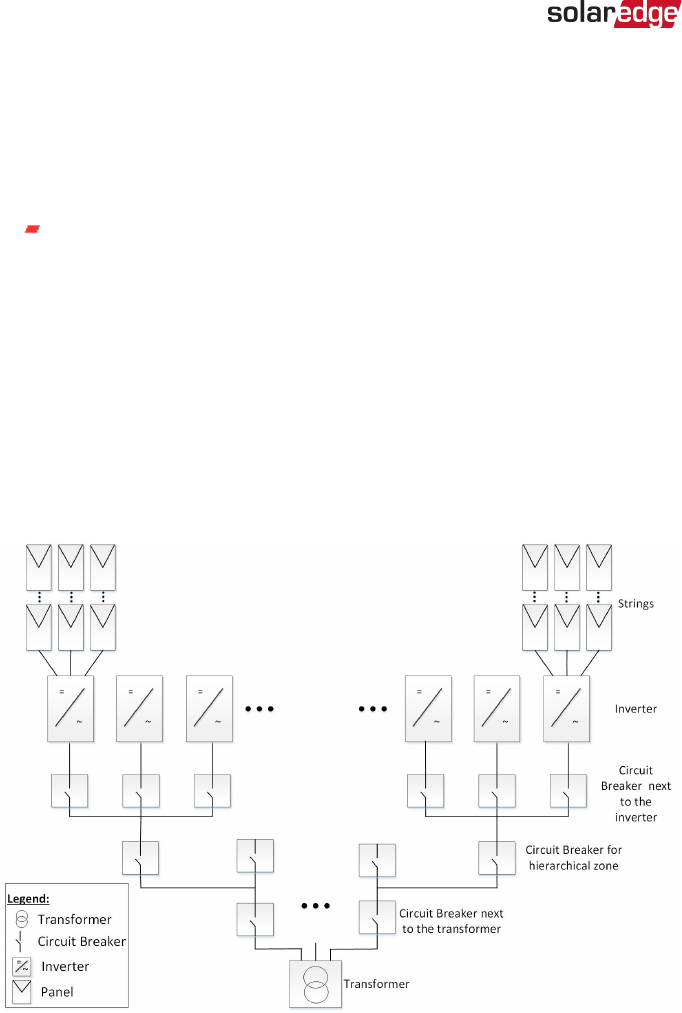

Figure 47: Typical transformer and commercial three phase inverter installation topology

-Three Phase System Installation Guide MAN-01-00002-4.3

110 Appendix E: Determining the Circuit Breaker Size
