Wire type Connect to terminal

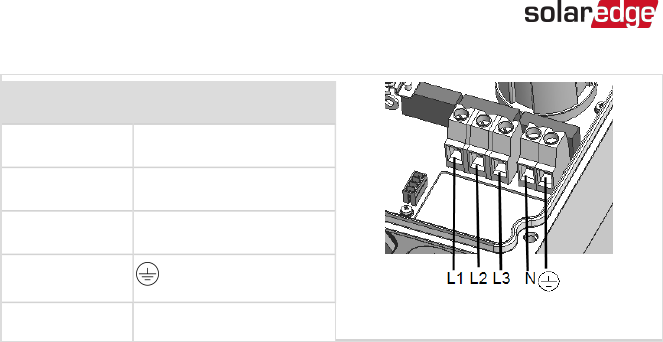

Figure 46: AC terminals
Line 1 L1
Line 2 L2
Line 3 L3
PE (grounding)
Neutral N
4. Tighten the screws of each terminal with a torque of 0.88-1.1 lb.*ft / 1.2-1.5 N*m.
5.
If you replaced a Safety Switch with a built-in Energy Meter, connect the RS485
connector from the Energy Meter to the inverter communication board.
6. Verify that there are no unconnected wires at the output of the Safety Switch and
that any unused terminal screws are tightened.
7. Connect the DC and AC wires to the Safety Switch. Refer to
Connecting the AC and
the Strings to the Safety Switch
on page 42.
8.
If you replace a Safety Switch with a built-in Energy Meter, connect the RS485
connector to the inverter communication board.
9. Ensure proper conduit sealing; inspect the entire conduit run and use standard
conduit sealants to avoid water penetration.
-Three Phase System Installation Guide MAN-01-00002-4.3
108 Replacing the Safety Switch
