Datasheet

SONARANGE UPF-A 08.13 e
This Information corresponds to the current state of knowledge. SNT reserves the right to make technical changes. Do not use these products in any application
where failure of the product could result in personal injury. Liability for consequential damage resulting from the use of SNT products is excluded.
SNT Sensortechnik AG, Hammerstrasse 6, CH-8180 Bülach, Switzerland, Phone [phone], Fax [phone], [e-mail] 4/4
www.sntag.ch

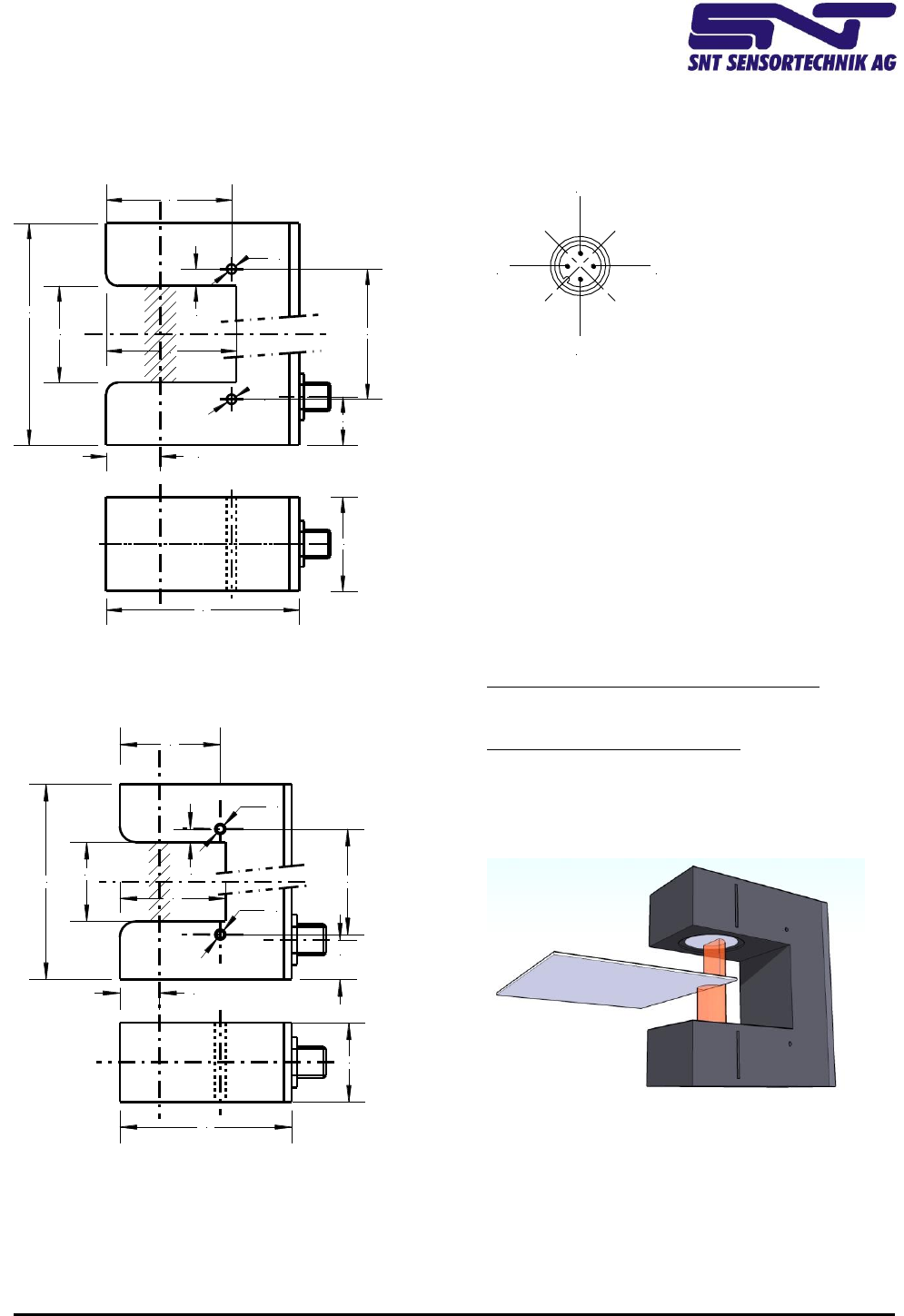

Dimensions
UPF-A 40/13 TOR 24 CA / UPF-A 70/13 TOR 24 CA
UPF-A 30/8 TOR 24 CA / UPF-A 60/8 TOR 24 CA
Electrical connection
View on the sensor
1 brown: +24VDC
2 white: synchronization / teach-in input
3 blue: 0V
4 black: analogue output 0...10V
In case of heavy electromagnetic interference on the
machine it can be advantageous to mount the sensor
galvanically isolated (e.g. plastic liner and plastic screws).
Furthermore the machine chassis can be connected to the
sensor ground (0V).
Accessories (see also data sheet ‚ACC’)
PUR cable 3-wire (pin 1, 3, 4) with M12 connector:
l=2m Type KAB 2L3VGPUR
PUR cable 4-wire with M12 connector:
l=2m Type KAB 2L4VGPUR
7
92 / 122
40 / 70
54
22.5
39
M4
54 / 84
52
M4
80
20
30 / 60
40
M4
30
74 / 104
38
5
M4
15
40 / 70
65
15
1
2
3
4
