Page 20 104044-001 AB62 Work Platform - Operator Manual
Specifications
S PECIFICATIONS
Specifications are subject to change without notice. Hot weather or heavy use may affect performance.
ITEM

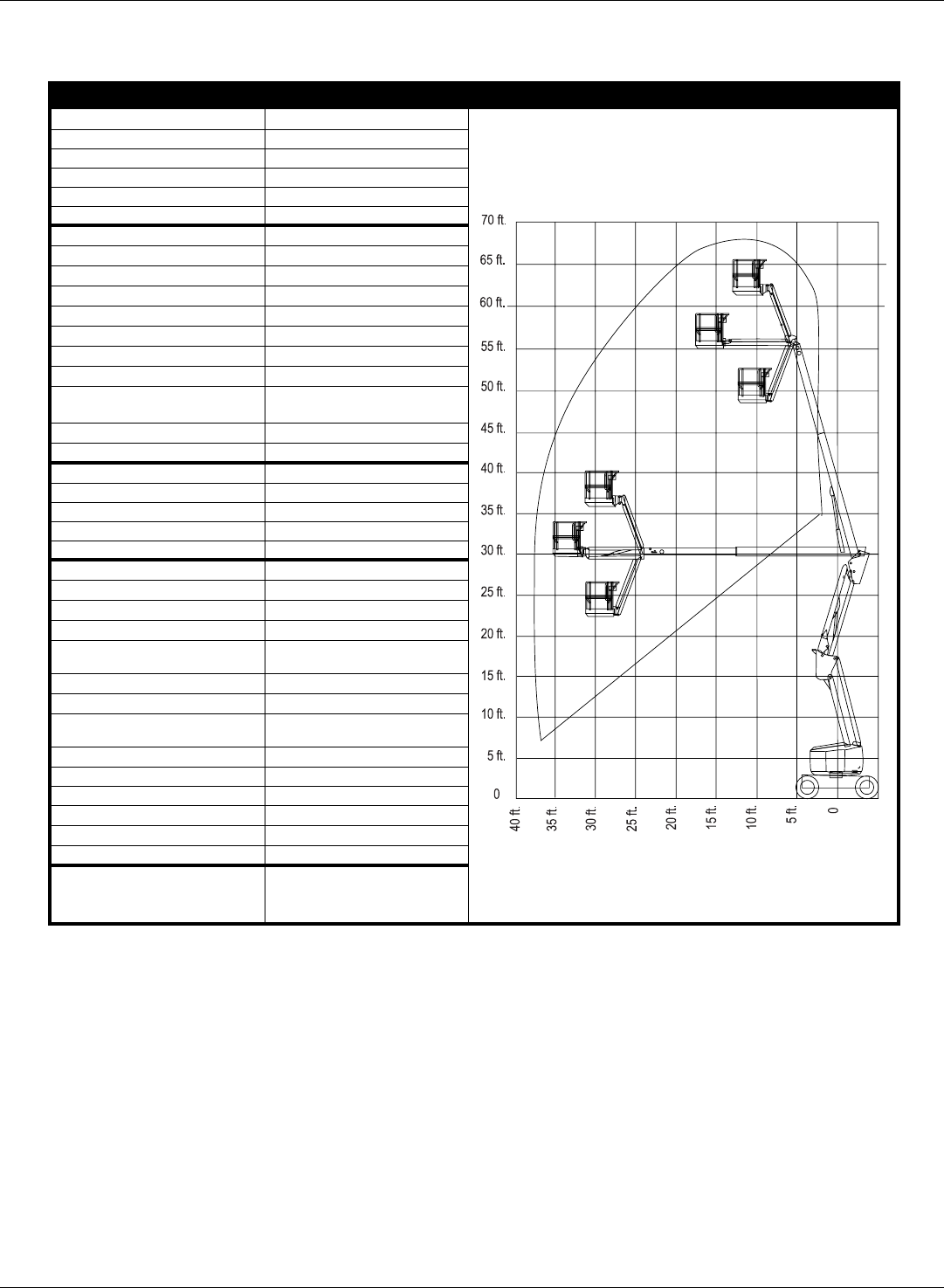

Specification Reach Envelope Diagram
Height
Working Height 20,7 m [
68 ft.
]
Max. Platform Height 18,9 m [
62 ft.
]
Platform step in Height 343 mm [
13.5 in.
]
Up and Over Height 9,1m [
30 ft.
]
Drivable Height 18,9 m [
62 ft.
]
Horizontal Outreach
10,7 m [
35 ft.
]
Turret Rotation
360° Continuous
Platform Rotation
180°
Tail Swing
0
Jib Length
1,9 m [
6ft. 4 in.
]
Jib Arc
140°
Inside Turning Radius
2,5 m [
8 ft.
]
Outside Turning Radius
5.5 m [
18 ft.
]
Drive Speed
(boom stowed and lowered)
HIGH
6,8 km/h [
4.25 mph
]
LOW
2,6 km/h [
1.6 mph
]
Drive Speed (Elevated)
0,96 km/h [
0.6 mph
]
Maximum Gradeability
22° [
40%
]
Dimensions (boom stowed)
Platform Size, Standard 1,8 m [
6 ft.
] 1 m x 1,8 m [
39 in. x 72 in.
]
Platform Size, Optional 2,4 m [
8 ft.
] 1 m x 2,4 m [
39 in. x 96 in.
]
Guardrails 1,4 m [
45 in.
]
Toeboard 152 mm [
6 in.
]
Platform Capacity (Maximum)
227 kg [
500 lbs.
]
Occupants (Maximum)
2
Weight
10,614 kg [
23,400 lbs.
]
Overall Height
2,5 m [
8 ft. 2 in.
]
Overall Length
8,2 m or 7,2 m Minimum
[
27 ft. or 23 ft. 6 in. Minimum
]
Overall Width
2,3 m [
7 ft. 7.5 in.
]
Wheel Base
2,3 m [
8 ft. 6 in.
]
Ground Clearance
CENTER
0,46 m [
18 in.
]
AXLE
0,32 m [
12.5 in.
]
Power Source
Dual Fuel GM 3.0 L – 83 HP
Diesel Perkins 704-30 – 63 HP
System Voltage
12 VDC
Maximum Hydraulic Pressure
345 bar [
5000 PSI
]
Controls
Electric Proportional
Tires
Size 19 x 15 NHS - 14 PLY
Pressure 5,5 bar [
80 PSI
]
