Use and Care Manual

GB - 9
Install Discharge Chute
(Figure 5)
1. Remove mounting hardware from the
bottom of the chute pedestal.
2. Install discharge chute over opening in
the auger housing and secure pedestal
to auger housing with hardware
removed in step 1.
Install Discharge Chute Crank
(Figure 6)
1. Slide chute crank through crank support
bracket.
NOTE: Be careful not to damage the nylon
bushing when sliding crank through bracket.
2. Connect the chute crank to the pinion
gear on chute with spring clip pin.

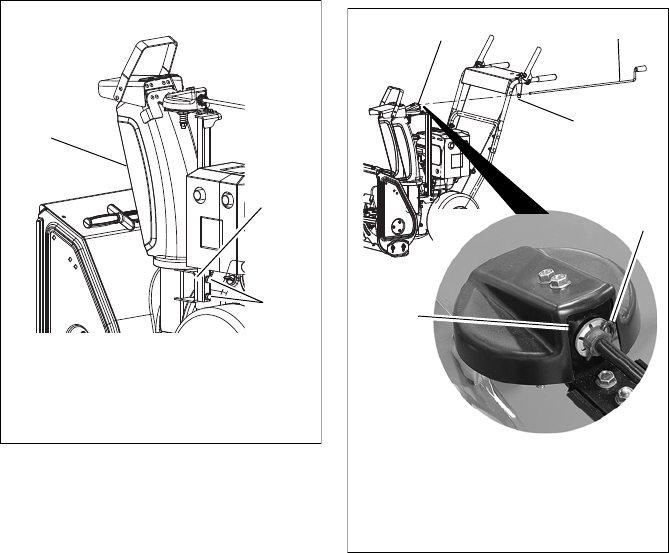

Figure 5
1. Mounting
Hardware
2. Discharge
Chute
3. Chute
Pedestal
1
3
2
OS7025
Figure 6
1. Chute Crank
2. Crank Support Bracket
3. Pinion Gear
4. Spring Clip
2
1
4
3
OS7025
OS7030
3
