DISCHARGE CHUTE DEFLECTOR
Deflector must stay in selected position while
throwing snow.
To adjust, loosen then retighten the wing
knob to desired tension (Figure 16).
DISCHARGE CHUTE
If chute does not stay in position while
operating, tighten nut on carriage bolt at pivot
point to increase tension on spring
(Figure 17).
ATTACHMENT CLUTCH/BRAKE
ADJUSTMENT
Remove Attachment Cable Slack
1. Shut off engine, remove key, disconnect
spark plug wire and allow unit to cool
completely.
2. Loosen hardware securing belt cover to
unit.
NOTE: DO NOT completely remove the
hardware from unit.
3. Remove belt cover.
4. Loosen jam nut on cable adjustment
barrel, and then turn the adjustment
barrel down to shorten cable and
remove all cable slack. See Figure 18.

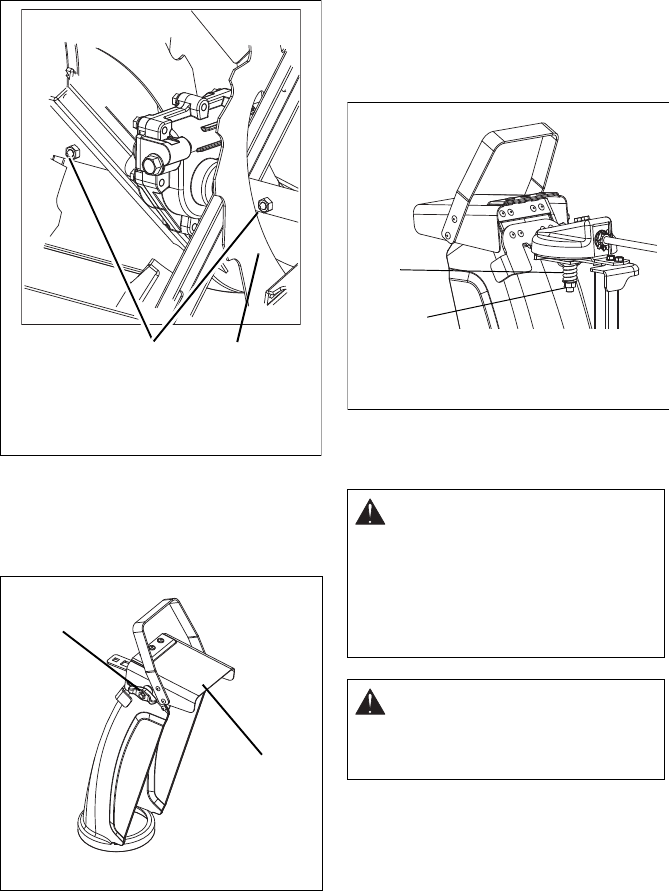

Figure 15
1
1. Auger
2. Shear Bolts
2
Adjusting
Hardware
OS7055
Discharge
Chute
Deflector
Figure 16
WARNING: IMPROPER
ADJUSTMENT could result in
unexpected movement of auger
and impeller causing death or
serious injury. AUGER /
IMPELLER MUST STOP within 5
seconds when attachment
clutch/impeller brake lever is
released.
WARNING: Adjustment procedure
requires the engine to be run with
the belt cover off. AVOID INJURY.
Read and understand the entire
Safety section before proceeding.
Figure 17
1. Carriage Bolt
2. Spring
1
2
