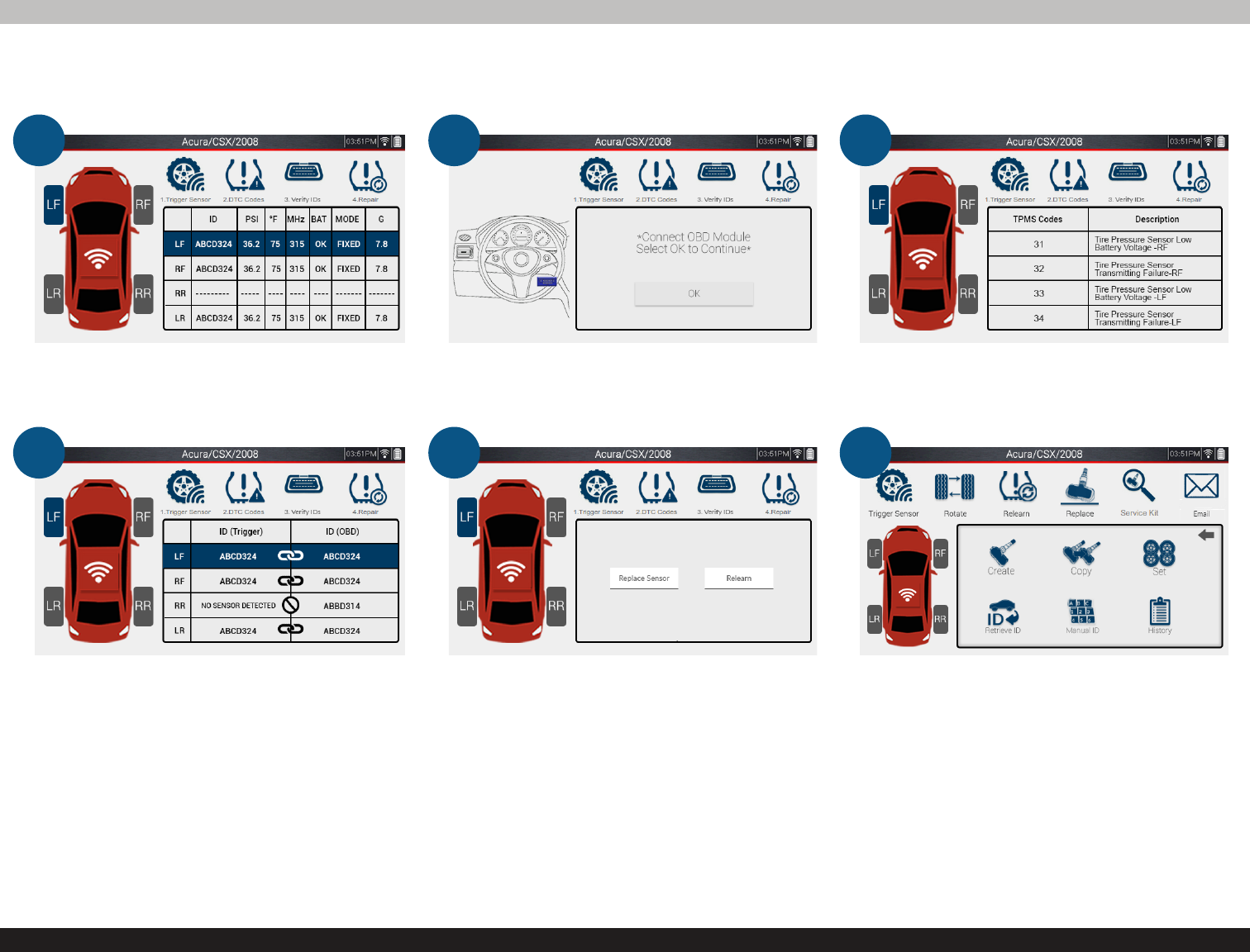

After selecting Verify IDs/DTC Codes, trigger

each sensor of the vehicle. In this example

the RR sensor is not triggering.

Continuing on to DTC Codes, ensure the OBDII

Cable is connected to the tool and vehicle with

the ignition in the ON position, Then tap “OK”.

In this example, it shows that two codes are

present. The rst code may be the issue

regarding the sensor.

1 2 3

Continuing on to Verify IDs, this example

shows that there is an ID stored in the vehicle

but triggering the sensor shows no sensor

detected. The sensor needs to be replaced.

Continuing on to Repair, selecting either Replace

or Relearn will take you to that screen at the main

TPMS function where you can program a sensor,

or perform a relearn

In this example, programming a new sensor

is needed. From the program screen, a new

sensor can be programmed, and a relearn

can be performed if necessary. See section

B-4 for programming, and B-2 for relearns.

4 5 6

Note: If all sensors appear on the Verify IDs screen but the IDs do not match, a relearn is necessary to match the IDs.

Summary of content (12 pages)

PAGE 1
2 After selecting Verify IDs/DTC Codes, trigger each sensor of the vehicle. In this example the RR sensor is not triggering. 4 3 Continuing on to DTC Codes, ensure the OBDII Cable is connected to the tool and vehicle with the ignition in the ON position, Then tap “OK”. 5 Continuing on to Verify IDs, this example shows that there is an ID stored in the vehicle but triggering the sensor shows no sensor detected. The sensor needs to be replaced. In this example, it shows that two codes are present.
PAGE 2
D - Settings Within the Settings function, a variety of customizable settings can be changed for user preference. Each setting is described in the next section.
PAGE 3
Profile Change internal tool information including Company Name, Address, and Phone Number. Date and Time Change Date and Time settings including Date, Time, Time Zone, set automatic Date and Time On/Off. Language Change between 10+ Languages including English, Spanish, French, and more. Region Change Region from North America, Europe, Australia, or Japan. Units Change Pressure (PSI, Bar, kPa) and Temperature (ºF, ºC) units.
PAGE 4
E - History Within the History function, view all saved jobs in the tool and revisit them. Jobs will be listed in order by date and will display customer name and vehicle Make, Model, and Year.
PAGE 5
F - Training Within the Training function, view a TPMS troubleshooter that takes the user through common TPMS issues to reach a solution. As well as an in-depth Demo mode that takes the user step-by-step through the main TPMS function.
PAGE 6
1. Troubleshooter Troubleshooter allows the user to diagnose common TPMS issues. The function will ask common questions to guide the user to a solution. Tap each answer as it applies, and the tool will take the user to the screen neccessary.
PAGE 7
2. Demo Demo mode takes the user step-by-step through the main TPMS function. From the main menu, all the way down to sending an email, the user can Demo the tool. Use this mode for practice or training purposes. Note: this mode is for Demo purposes only, any information that appears on-screen are examples and information may not match certain situations.
PAGE 8
Chapter 3: Updating The TPMS5 can be updated directly through WiFi. Ensure the tool is plugged in and charging whenever performing an update. A. via WiFi Connection 1 2 First, WiFi must be set up on the tool. select Settings. 4 3 Scroll down to WiFi Setup and select it. 5 You will be prompted to enter the password for you network. When finished, select Done. The WiFi setup screen will appear, as well as all available networks. Select the network you are using.
PAGE 9
7 8 If this is your first time visiting this screen, you will be prompted to register your tool. Enter all information, then select Save. 9 Once finished, select Update. 10 The Tool will begin updating, DO NOT interrupt this process. Once finished, the tool will restart and it will be on the latest software version. 34 This screen will display if there is an update available, as well as other software information. Select Update.
PAGE 10
Chapter 4: Warranty/Service and Repair Snap-on Tools Company Limited One (1) Year Warranty Snap-on Tools Company (the “Seller”) warrants only to original purchasers who use the Equipment in their business that under normal use, care and service, the Equipment (except as otherwise provided herein) shall be free from defects in material and workmanship for one year from the date of original invoice.
PAGE 11
TPMS5 Technical Support and Service US SERVICE AND TECH SUPPORT 35990 Industrial Road, Livonia, Michigan 48150 844-349-8767 CANADA SERVICE AND TECH SUPPORT 4-2355 Royal Windsor Drive, Mississauga, Ontario L5J 4S8 855-455-8767 Email: support@tpmsconnect.com Assembled in Taiwan Snap-on is a trademark, registered in the United States and other countries, of Snap-on Incorporated. ©2020 Snap-on Incorporated. All Rights Reserved. All other marks are trademarks of their respective holders.
PAGE 12
EU Declaration of Conformity Product Model/Product Product Name: Tire-pressure monitoring system Model Name: TPMS5 Name and address of the manufacturer or his authorised representative: ATEQ INSTRUMENTS (ASIA) PTE LTD.TAIWAN BRANCH (SINGAPORE) NO.3, LANE 223, SAN JIA DONG STREET, 40642, TAICHUNG, TAIWAN This declaration of conformity is issued under the sole responsibility of the manufacturer.
