Installation Instructions
Replacement Top (Part # 9085235)
2010 and Up Unlimited (4 Door)
Replacement Top (Part # 9075235)
2010 and Up JK (2 Door)

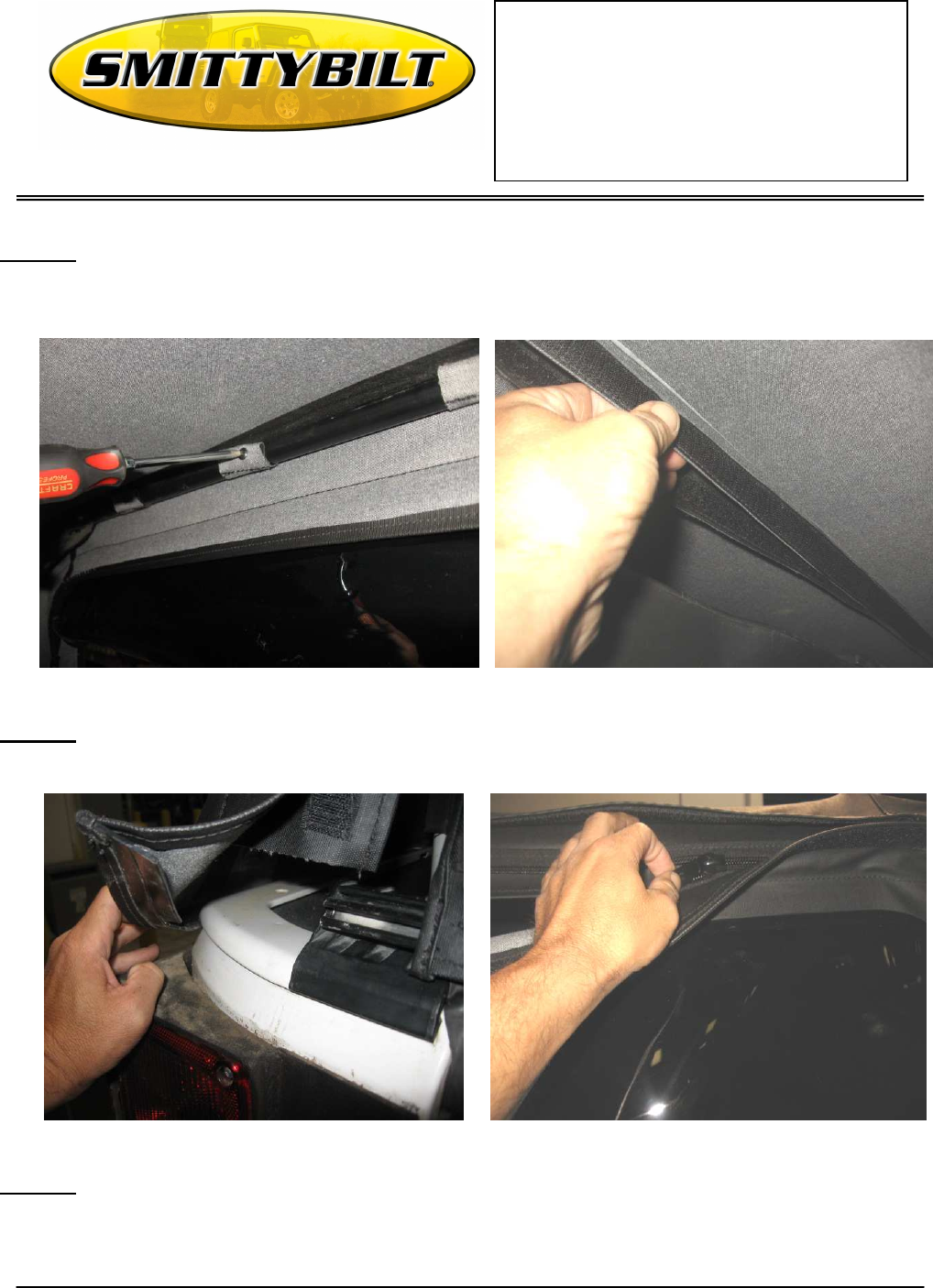

Step 15: Wrap the front flap around the front part of the bow and fasten secure by fastening
the Velcro. (Fig 23)
(Fig 22) (Fig 23)
Step 16: Pull down the rear corner of the bow assembly from the outside and attach the rear corner of the top
by sliding the sewn in extrusion into the body tub rail. (Fig 24)
(Fig 24) (Fig 25)
Step 17: Start the zipper on the rear quarter windows. Zip closed a few inches. (Fig 25)
