Installation Manual

WWW.SMITTYBILT.COM
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Replacement Top (Part # 9085235)
2010 and Up Unlimited (4 Door)
Replacement Top (Part # 9075235)
2010 and Up JK (2 Door)
(Fig 4) (Fig 5)

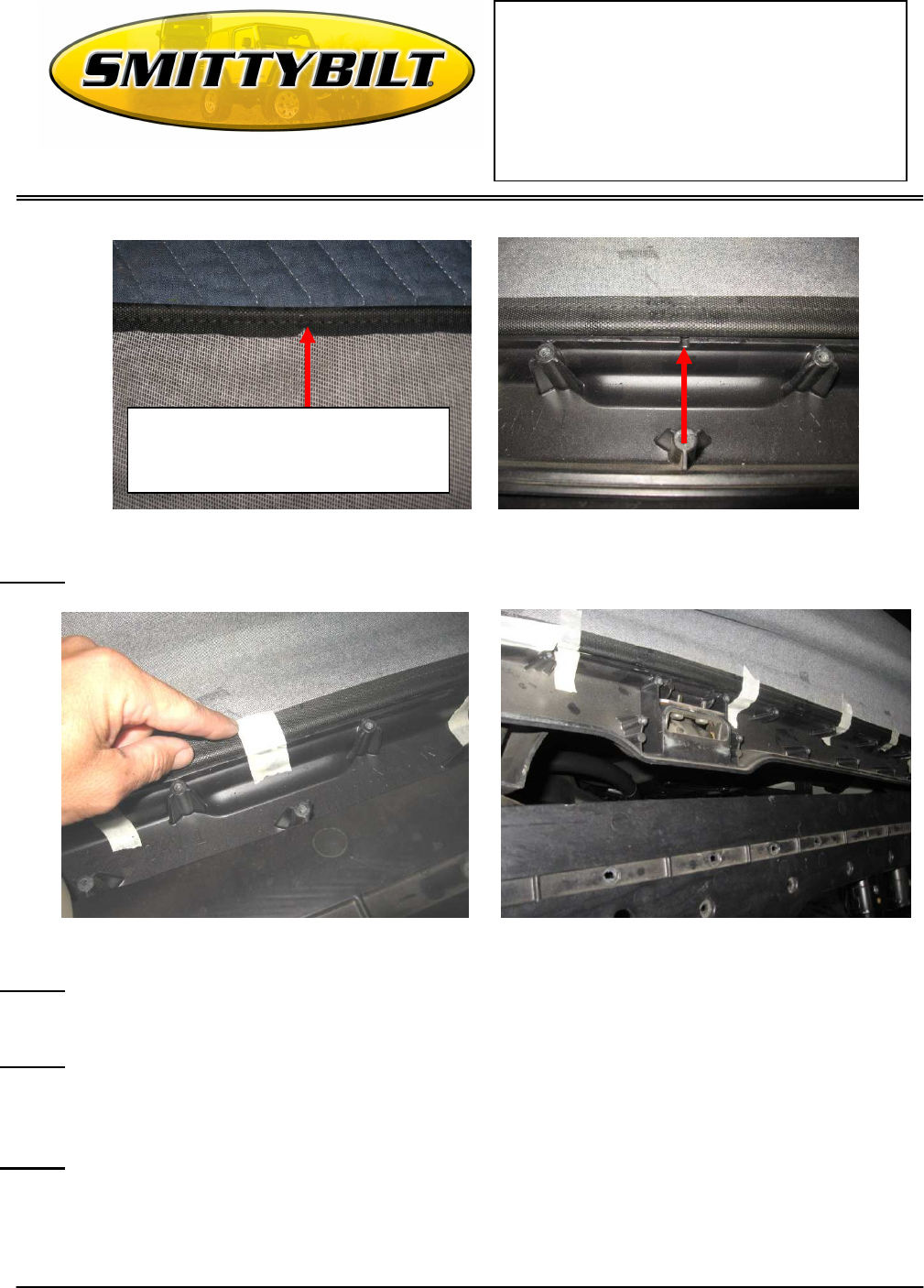

Step 4: Use masking tape to help hold the top along the header. (Fig 6, 7)
(Fig 6) (Fig 7)
Step 5: Re-install the top portion of the header back on with the previously removed screws. This will clamp
the front of the top inside the header. (Fig 8, 9)
Step 6: Un-clamp the front header from the windshield frame and fold the front section of bow back over top
while draping the top back around the header .Pull the front corners back tight around header so fabric is
smooth around header. (Fig 10, 11)
Step 7: Install the cable anchor and the plastic top flap back on the end of the header with the previously
removed hardware. (Fig 12,13)
Measure the front of the top and make a
mark so you know where the center of
the top should be.
