Instructions for the installer
12
3.2 Burner and nozzle characteristics table
Burner
ULPG (PROPANE) – 2.75 KPa
Nominal gas consumption
(MJ/h)
Injector
(mm)
Auxiliary 3.9 0.54
Semi rapid 6.3 0.68
Rapid 10.8 0.88
WOK 12.8 1.00
Burner
NG – 1.0 KPa
Nominal gas consumption
(MJ/h)
Injector
(mm)
Auxiliary 3.7 0.90
Semi rapid 6.5 1.20
Rapid 10.9 1.55
WOK 12.7 1.75

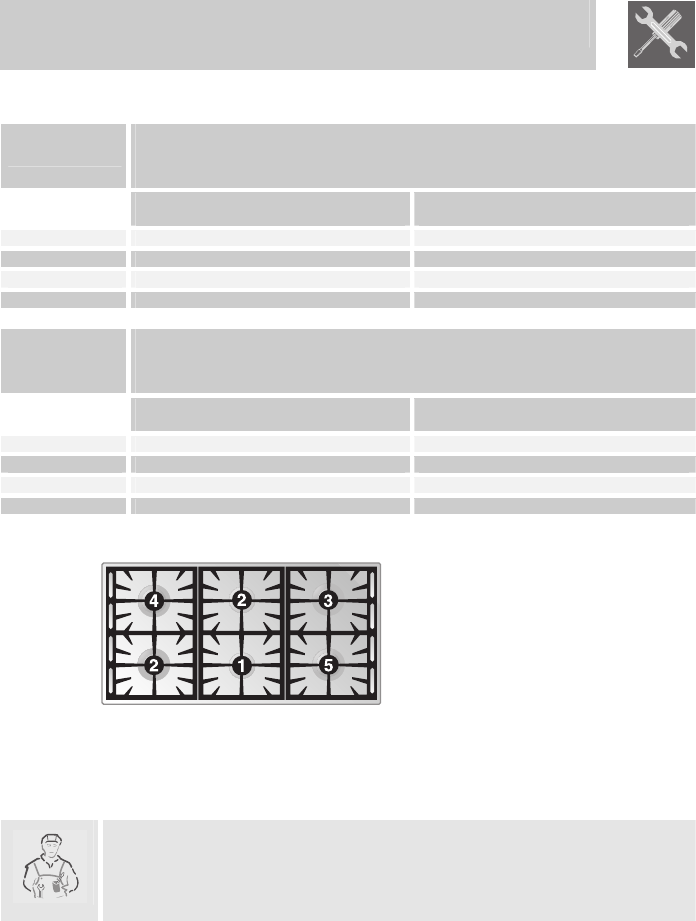

3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 WOK
5 WOK
4. FINAL OPERATIONS
After replacing the nozzles, reposition the flame-spreader crowns, the
burner caps and the grids.
After adjustment to a different kind of gas from the one for which the
cooker has been tested, replace the plate inside the storage
compartment with one corresponding to the new kind of gas. This plate
can be obtained from your nearest Authorised Assistance Centre.
