User's Manual

C HAPTER 3 | Installing the Switch
Installation
– 18 –
HOW TO CONNECT TO AC POWER
To supply AC power to the switch, first verify that the external AC power supply
can provide 100 to 240 VAC, 50-60 Hz, 0.5 A minimum.
To connect the switch to a power source:
1. Plug the power cord into a grounded, 3-pin, AC power source.

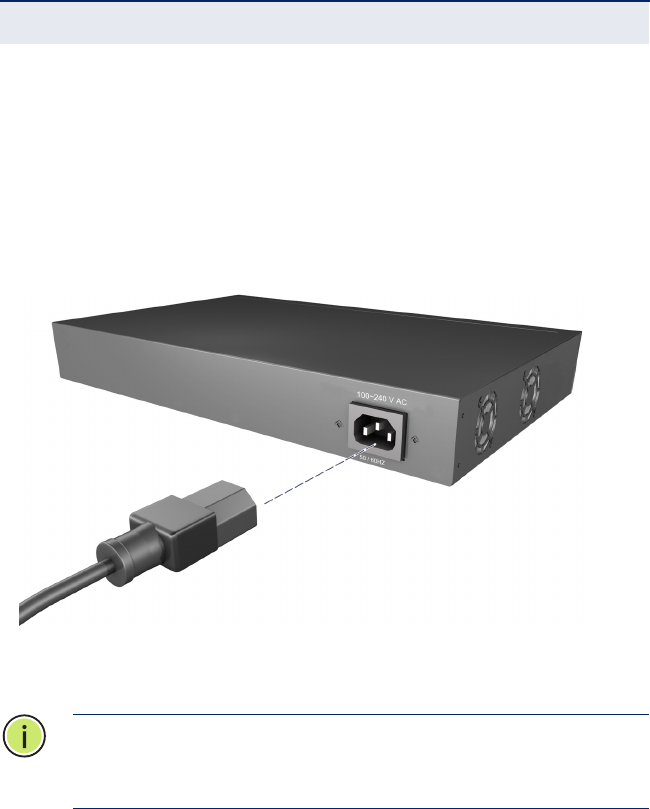

Figure 6: AC Power Cord and Power Socket
2. Insert the plug on the other end of the power cord directly into the AC input
socket on the back of the switch.
3. Check the LED indicators on the switch front panel as the unit is powered on
to verify that power is being received. If not, recheck the power cord
connections at the AC supply source and back panel power input connector.
N OTE : Your country’s AC power outlet standards may not match the
power plug of the included AC power cord, you may need to change the
AC power cord. You must use a cord set that has been approved for the
socket type in your country.
