2 HARDWARE DESCRIPTION
This chapter describes the front panel, rear panel, and LED indicators of the
switch.
FRONT PANEL
The front panel of the SMCFS2601P consists of switch LED indicators, 24 10/100
Mbps ports, and two 10/100/1000 combo ports.

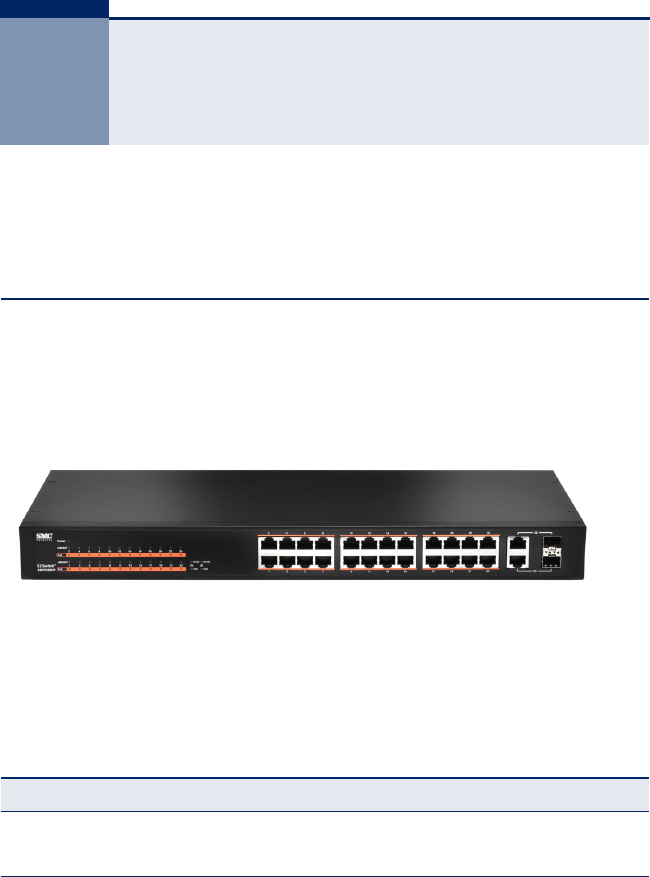

Figure 1: SMCFS2601P Switch Front Panel
PORT AND SYSTEM STATUS LEDS
The switch includes a display panel for key system and port indications that
simplifies installation and network troubleshooting. The LEDs, which are located
on the front panel, are described in the following table.
Table 1: System and Port Status LEDs
LED Condition Status
Power On Green The internal power supply is operating normally.
Off The unit has no power connected.
LNK/ACT On Green Port has established a valid 10/100 Mbps network
connection.
On Amber Port has established a valid 10/100/1000 Mbps
network connection.
Off There is no valid link on the port.
