- SMC Wireless Cable/DSL Broadband Router User Guide

Hardware Description
7
• One RJ-45 port for connection to a DSL or cable modem (WAN).
This port also auto-negotiates operating speed
to 10/100 Mbps, the mode to half/full duplex, and the pin signals
to MDI/MDI-X.
The following figure shows the components of the Wireless
Barricade™:

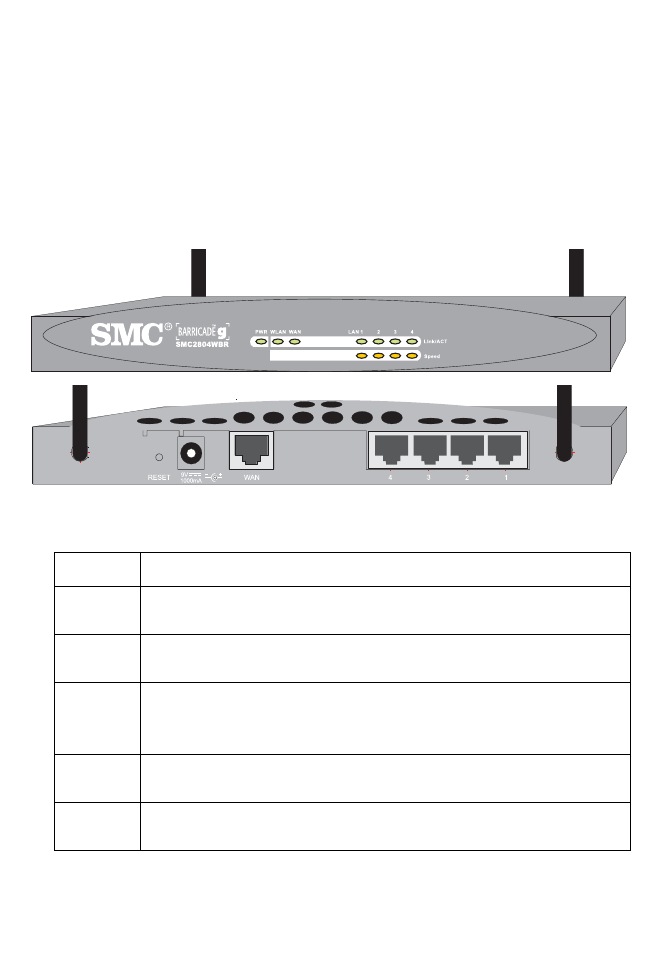

Figure 1. Front and Rear Panels
Item Description
LEDs Power, WLAN, WAN and LAN port status indicators.
(See "LED Indicators" on page 2.)
Reset
Button
Use this button to reset the power and restore the default factory
settings.
Power
Inlet
Connect the included power adapter to this inlet.
Warning: Using the wrong type of power adapter may damage
your router.
WAN
Port
WAN port (RJ-45). Connect your cable modem, DSL modem,
or an Ethernet router to this port.
LAN
Ports
Fast Ethernet ports (RJ-45). Connect devices (such as a PC,
hub or switch) on your local area network to these ports.
