User Guide

SMAYS

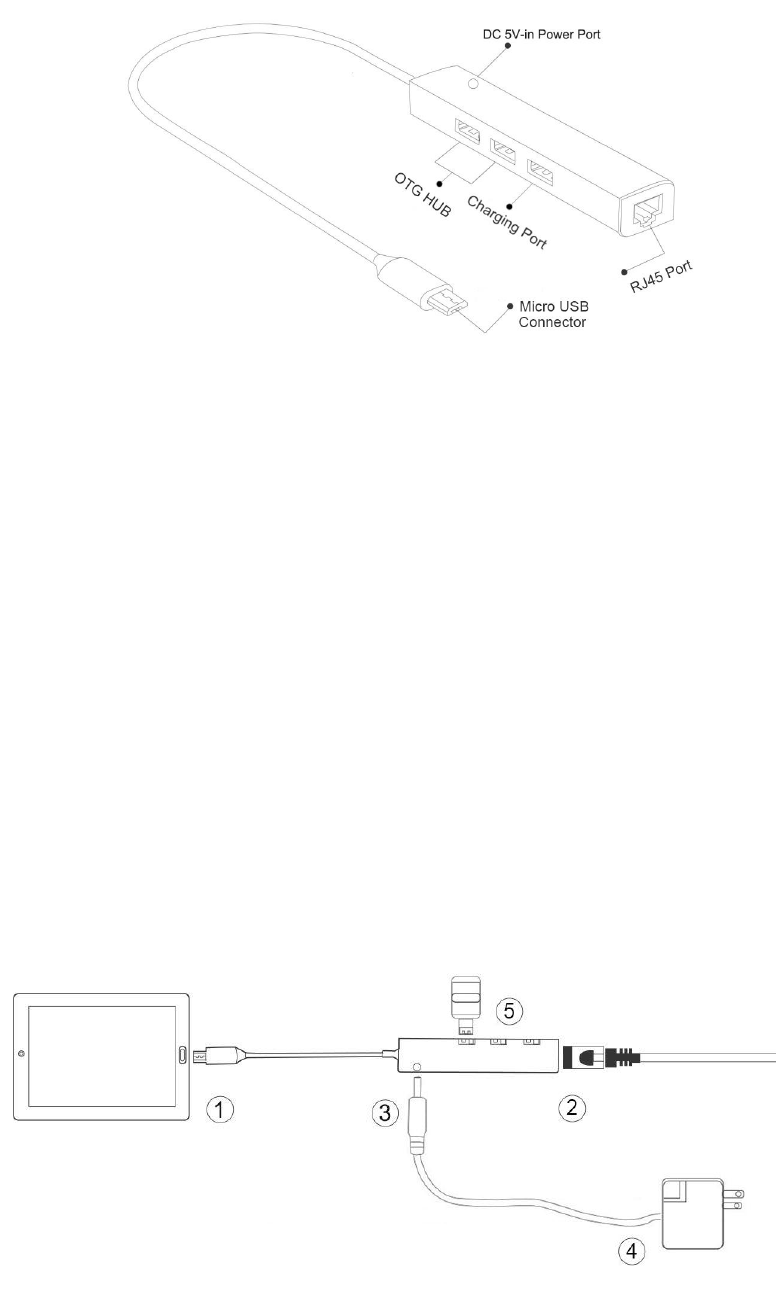

Setup

1. Connect the LAN adapter’s Micro USB connector into tablet or PC, the LED

indicator is on.

2. Connect network cable to RJ45 port of this Ethernet adapter, the LED indicator in

working status (sparkle).

3. Plug DC Cable into Ethernet adapter’s DC port

4. Connect DC-5V power adapter for auxiliary power supply.

5. Plug a USB flash drive or other USB external device into the HUB.

Note：

If the host and the Ethernet adapter cannot connect to the network normally, please

reconnect and test according to the above steps

PAGE 1
SMAYS Setup 1. Connect the LAN adapter’s Micro USB connector into tablet or PC, the LED indicator is on. 2. Connect network cable to RJ45 port of this Ethernet adapter, the LED indicator in working status (sparkle). 3. Plug DC Cable into Ethernet adapter’s DC port 4. Connect DC-5V power adapter for auxiliary power supply. 5. Plug a USB flash drive or other USB external device into the HUB.
PAGE 2
What’s in the Package 1x Ethernet Adapter 1x 5 Feet DC Power Cable Customers' satisfication is the final goal of our service. So, if there have any problem of your purchase, please feel free send email to annie@smays.us.
