UMRR-12 Type 48 User Manual USA CAN.docx Version 2 I Page 8 of 15 I April 27, 2021
5.2 Sensor Dimensions
All values given in mm.

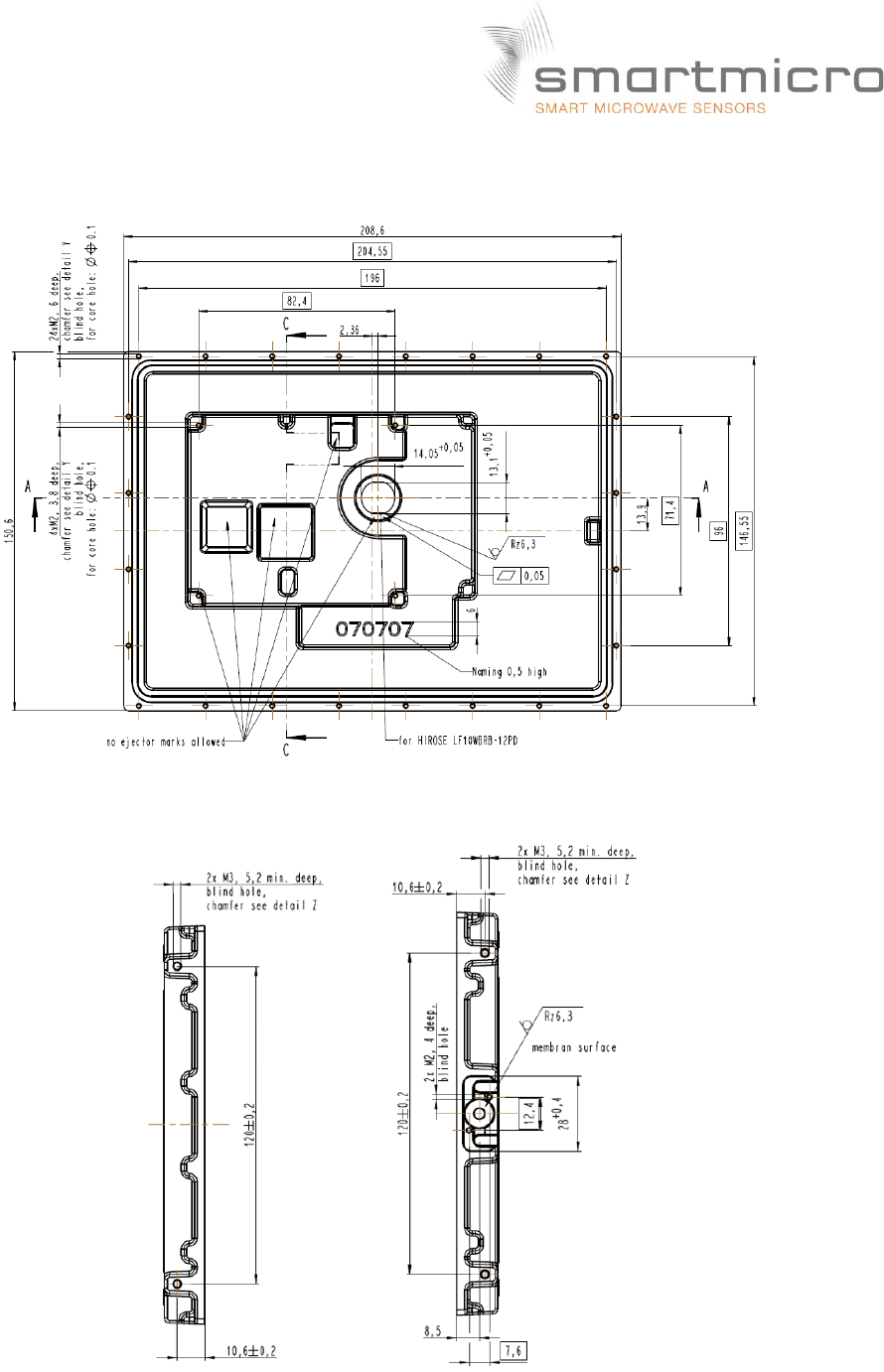

Figure 3: Housing 070707 dimensions (top view front)
Figure 4:Housing 070707 from the left side (left picture) and from the right side (right picture)
