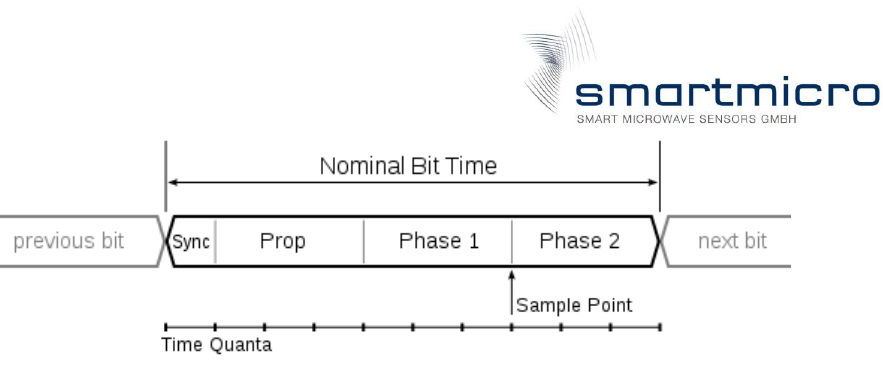

Figure 8: CAN bit timing as defined by the CAN protocol
6.4 RS485 data interface
The RS485 interface from the UMRR sensor has a predefined speed of 115200 baud/s.
Typical other data rates are between 921.6kBit/s and 56.7kBit/s.
The RS485 message payload is identical to the CAN format.
