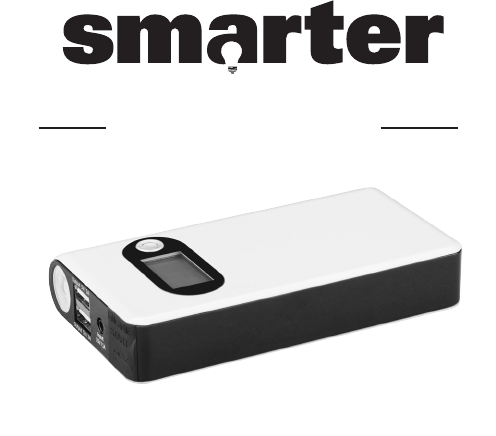

jump starter and portable power bank JUMP - CHARGE - POWER Jump Starter User Guide MODEL: JS-6000 FULLY CHARGE IMMEDIATELY AFTER PURCHASE. Fully recharge after each jumpstarting, or every 3 months to ensure long battery life. Revision: AB Issue Date: April 2017 Manual No.
DANGER Please read and understand all important safety and operating instructions before using this charger. In addition, please read and follow all battery and vehicle manufacturer’s instructions and cautionary markings. Failure to follow the instructions may result in ELECTRICAL SHOCK, EXPLOSION, or FIRE, which may result in SERIOUS INJURY, DEATH, DAMAGE TO DEVICE or PROPERTY. Do not discard this information.
What’s Included • JS-6000 Lithium Jump Starter & Portable Power Supply • 120V AC Charging Adapter • 12V DC Charging Adapter • Smart Jumper Clamps • USB Cable • 12V Cigarette Lighter Socket • User Guide RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
6) Use of an accessory not recommended or sold by the manufacturer may result in a risk of fire, electric shock or injury to persons. Do not operate with damaged accessory(s). 7) Locate the product as far away from battery as jumper cables permit. 8) Do not expose to rain or wet conditions. 9) To reduce the risk of damage to electric plug and cord, pull by the plug rather than the cord when disconnecting. 10) Operate with caution if the jump starter has received direct hit of force or been dropped.
ABOUT THIS PRODUCT It features low voltage protection (for the product itself), spark proof, reverse polarity protection and short circuit protection. This item can instantly jump start most single battery vehicles, up to 25+ (over 25) times on a fully charge. This product is also equipped with USB power output, LED flashlight and 12VDC power output. Technical Specification: Battery Type Lithium-ion Polymer Battery Capacity 6000mAh Starting Current 200A Peak Current 400A Jump Start Up to 2.
LED and Buzzer Communication: Red LED Green LED Buzzer Sound Condition 1 On Off One sound Jumper cables and device are connected. 2 Off On One sound Jumper cable and vehicle battery are connected. Ready to start the engine. 3 Slow flash Off No buzzer Lithium battery voltage in jump starter is low. 4 Slow flash Off No buzzer Have not turned on the ignition switch within the regulated time. To resolve this, you need remove clamps from vehicle battery, and connect again when No.
CONNECTING TO THE BATTERY 1) Identify polarity of battery posts. The positive battery terminal is typically marked by these letters or symbol (POS,P,+). The negative battery terminal is typically marked by these letters or symbol (NEG,N,-). 2) Do not make any connections to the carburetor, fuel lines, or thin metal parts. 3) Identify if you have a negative or positive grounded vehicle. This can be done by identifying which battery post (NEG or POS) is connected to the chassis.
of engine cranking. The jumpstart feature is designed for short term operation only, and more than 5 seconds may cause damage to the unit. Allow the jump starter to cool down for at least 3 minutes after each jumpstarting. 6) Disconnect the cable from the jump starter immediately after engine starts, and then remove from battery terminals.
2) Plug the other end of AC charging adapter into a wall socket. 3) Fully charge the unit. 4) When charging is complete, unplug the AC charging adapter from the wall socket first, then from the charging jack on the jump starter. DC Charging in Your Vehicle: 1) Turn the vehicle engine on. 2) Insert the DC charging adapter into the charging jack of the unit. 3) Plug the other end of DC charging adapter into vehicle’s cigarette lighter socket. 4) Fully charge the unit.
CONNECTING TO THE BATTERY LIMITED WARRANTY Effective April 15, 2017. Replaces all undated warranties and all warranties dated before April 15, 2017 Repair/Replacement Warranty Smartech Products warrants to the original purchaser that the mechanical and electrical components will be free of defects in material and workmanship for a period of one (1) year from the original date of purchase. This product is intended for household use only.
installed improperly or connected incorrectly to any electrical component. LIMITED Warranty (continued) Other Exclusions This warranty excludes: • Merchandise sold as reconditioned, used as rental equipment, or floor/display models sold without packaging and/or missing parts or components. • Repair and transportation costs of merchandise determined not to be defective. • Cosmetic defects such as paint, decals, etc. • Failures due to acts of God and other forces of nature beyond the manufacturer’s control.
