C H A P T E R 3
Using your interactive whiteboard system
22 smarttech.com/kb/170401
1
3
4
5 6 10
7
2
8 9 11 12 13 14

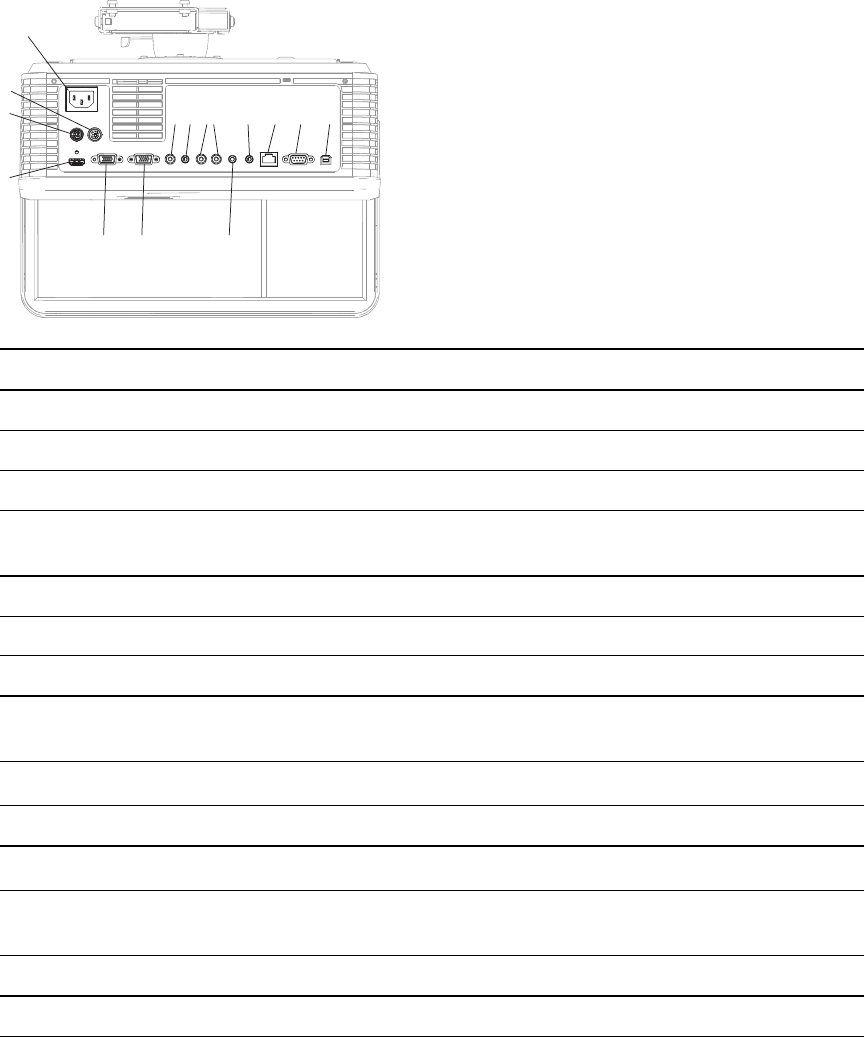

No. Connector Connect to:
1 Power Mains power supply
2 7-pin mini-DIN ECP cable harness
3 4-pin power mini-DIN 5V/2A output ECP cable harness
4 HDMI input High-definition video and audio source (not
included)
5 DB15F RGB video input (VGA 1) Primary computer (not included)
6 DB15F RGB video output (VGA Out) Secondary display (not included)
7 RCA Composite video input through RCA connector pod
8 3.5 mm phone jack audio input (×2) Audio sources associated with primary and
secondary computers
9 Left and right RCA audio input
through RCA connector pod
10 3.5 mm phone jack audio output Speakers (not included)
11 3.5 mm phone jack microphone Microphone (not included)
12 RJ45 Network (for web page management and
SNMP access)
13 DB9 RS-232F ECP cable harness
14 USB B Computer (for service access only)
