Appendix C
97 smarttech.com/kb/170401
Appendix C: Remote control code definitions

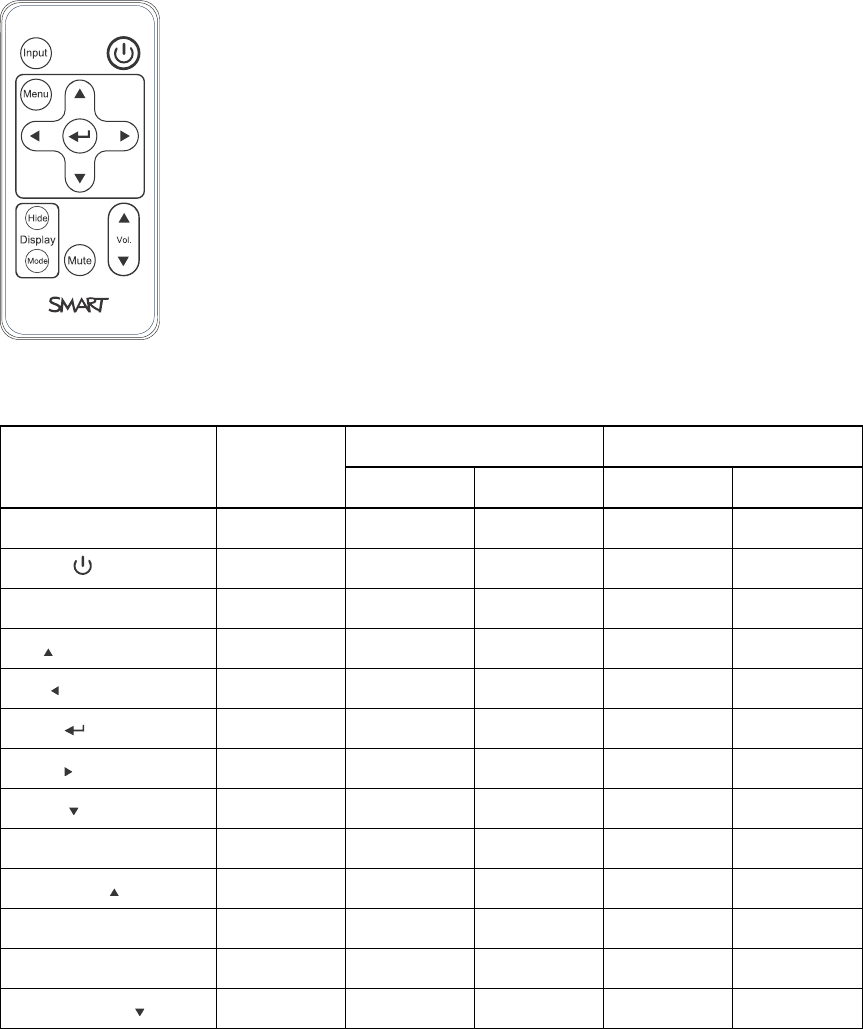

IR signal format: NEC1
Key Repeat
format
Vendor code Key code
Byte 1 Byte 2 Byte 3 Byte 4
Input F1 8B CA 14 EB
Power ( )
F1 8B CA 12 ED
Menu F1 8B CA 1B E4
Up ( ) F1 8B CA 40 BF
Left ( ) F1 8B CA 42 BD
Enter ( ) F1 8B CA 13 EC
Right ( ) F1 8B CA 43 BC
Down ( ) F1 8B CA 41 BE
Hide F1 8B CA 15 EA
Volume up ( ) F1 8B CA 44 BB
Mode F1 8B CA 45 BA
Mute F1 8B CA 11 EE
Volume down ( ) F1 8B CA 46 B9
