User Guide

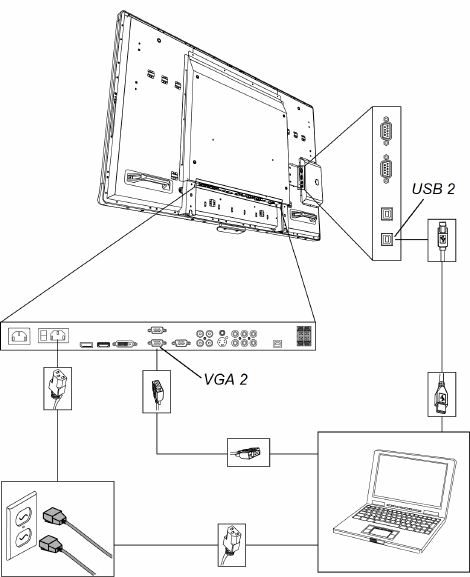

Computer 2 connection diagram
g To setup the computer 2 connection location
1. Connect a USB cable to the USB 2 receptacle on the inside terminal panel, and then run the
cable to the laptop connection location, such as beside the interactive flat panel or on a
conference table.
2. Connect a VGA video cable to the VGA2 interactive flat panel receptacle on the bottom
terminal panel, and then run the cable to the computer 2 connection location as above.
3. Bundle and cover the cables as appropriate to avoid a trip hazard.
To connect and use a computer using this installed connection, see Connecting computer 2 on page
50.
C H A P T E R 3
Connecting computers and peripheral devices
19
