Operation Manual

Description of the user interface SMA Solar Technology AG
8 WBSetup-BEN100411 User Manual
3 Description of the user interface

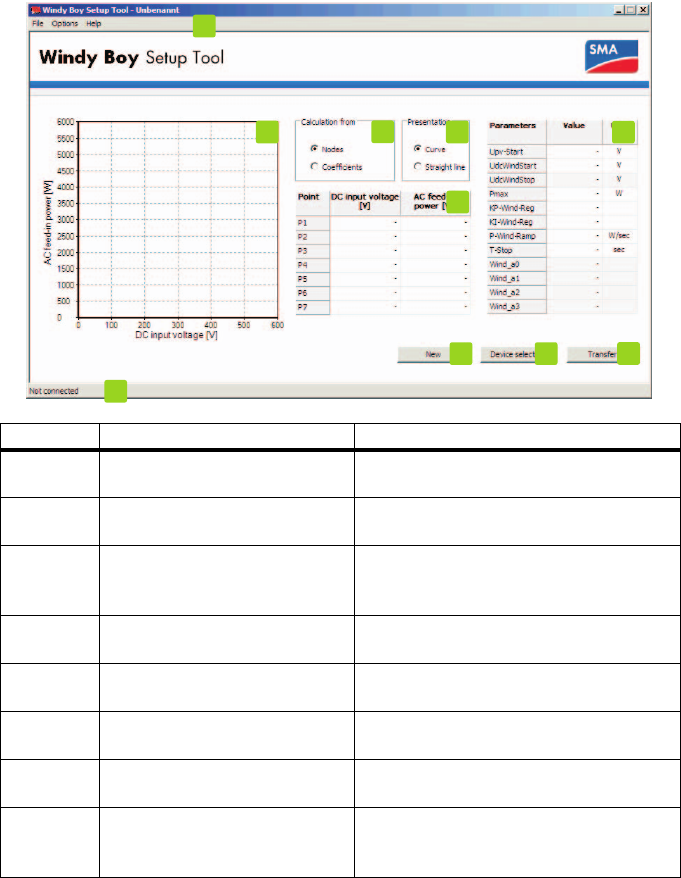

The following illustration shows the layout of the operating interface of the Windy Boy Setup Tool:
Object Description Function
A Menu bar The various items can be accessed via the menu
bar.
B Diagram of the power curve The power curve of the inverter is displayed in
this diagram.
C Option field for calculation of the
power curve
Here you can select whether the power curve
should be calculated from nodes or from
coefficients.
D Option field for presentation of the
power curve
Here you can select whether the power curve is
presented as a curve or as a line.
E Value range "Nodes" In this area you can specify the nodes from
which the power curve is calculated.
F Value range "Parameters" In this area you can enter the parameters of
your inverter.
G Button [New] By using the button you can delete the entered
data.
H Button [Device selection] By using this button you can select your inverter
type and take on the factory-installed
parameters.
A
B
C
D
E
F
G H
I
J
