2 Safety
2.1 Intended Use
The SMARooftopCommunicationKit is a communication set for TS4-R module technology
components. The SMARooftopCommunicationKit allows installation of the Cloud Connect
Advanced in an SMAinverter.
SUNNY PORTAL
INTERNET
TS4-R
GATEWAY
(GTWY)
...
...
...
UTILITY GRID
PV GENERATOR
ROUTER
PV INVERTER
with ROOFTOP
COMMUNICATION KIT
AC
DC
Ethernet
RS485
Wireless

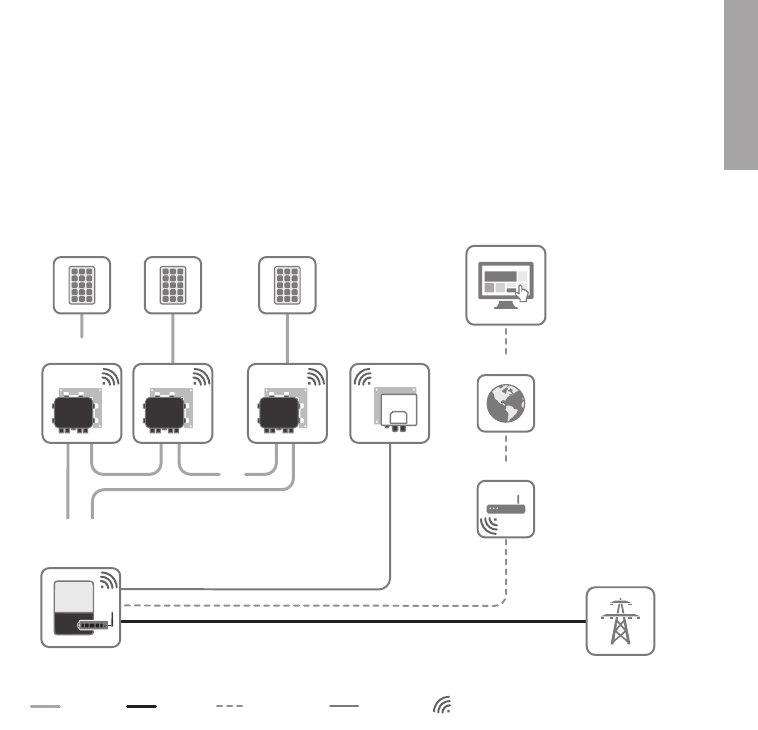

Figure 1 : System overview
The SMARooftopCommunicationKit must only be installed in the following SMAinverters:
• SB3.0-1SP-US-40 (Sunny Boy 3.0-US)
• SB3.8-1SP-US-40 (Sunny Boy 3.8-US)
• SB5.0-1SP-US-40 (Sunny Boy 5.0-US)
• SB6.0-1SP-US-40 (Sunny Boy 6.0-US)
• SB7.0-1SP-US-40 (Sunny Boy 7.0-US)
• SB7.7-1SP-US-40 (Sunny Boy 7.7-US)
The inverter still complies with the standard after the product has been installed.
The product is approved for the US and Canadian market and must only be used in these markets.
All components must remain within their permitted operating ranges at all times.
