6 Mounting the Gateway

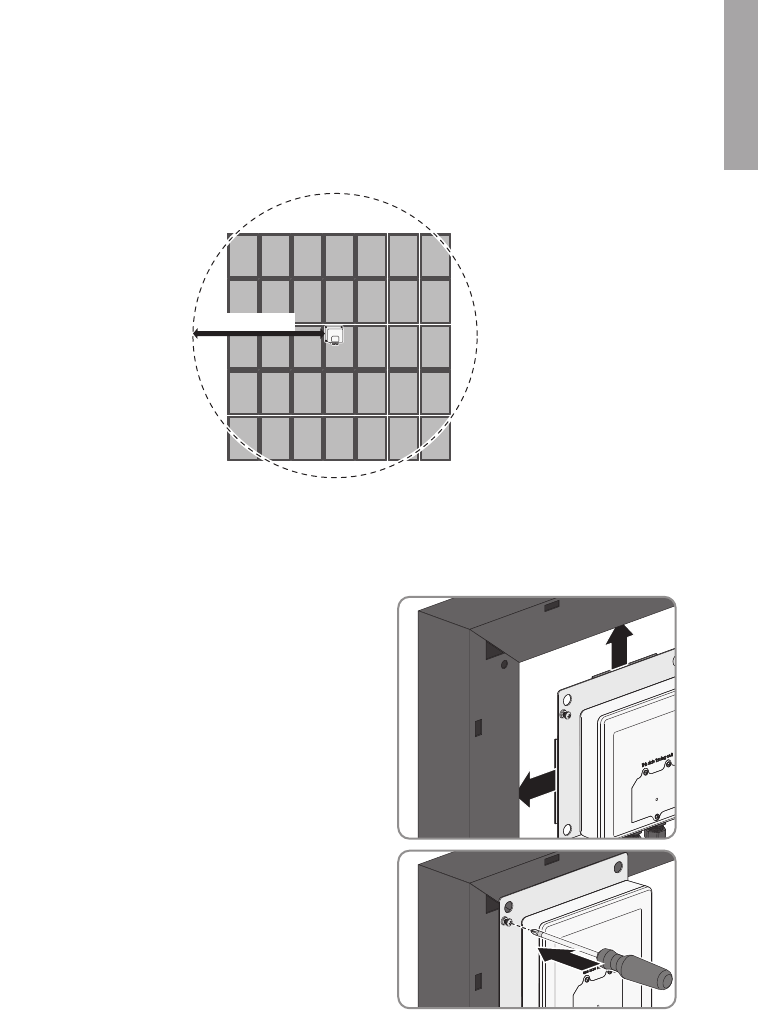

Mounting position
☐ The range of the wireless communication of the Gateway is approximately 15m (50ft). The
Gateway should be mounted in the center of the PV array.
15 m (50 ft)
Figure 6 : Mounting position of the Gateways in the PV array
Procedure:
1. For installation on the back of the module proceed as follows:
• Attach the bracket on the rear side.
• Tighten the screw using suitable tools.
6 Mounting the Gateway
SMA Solar Technology America LLC
Installation Manual 25RoofCommKit-P1-US-IA-xx-11
ENGLISH
