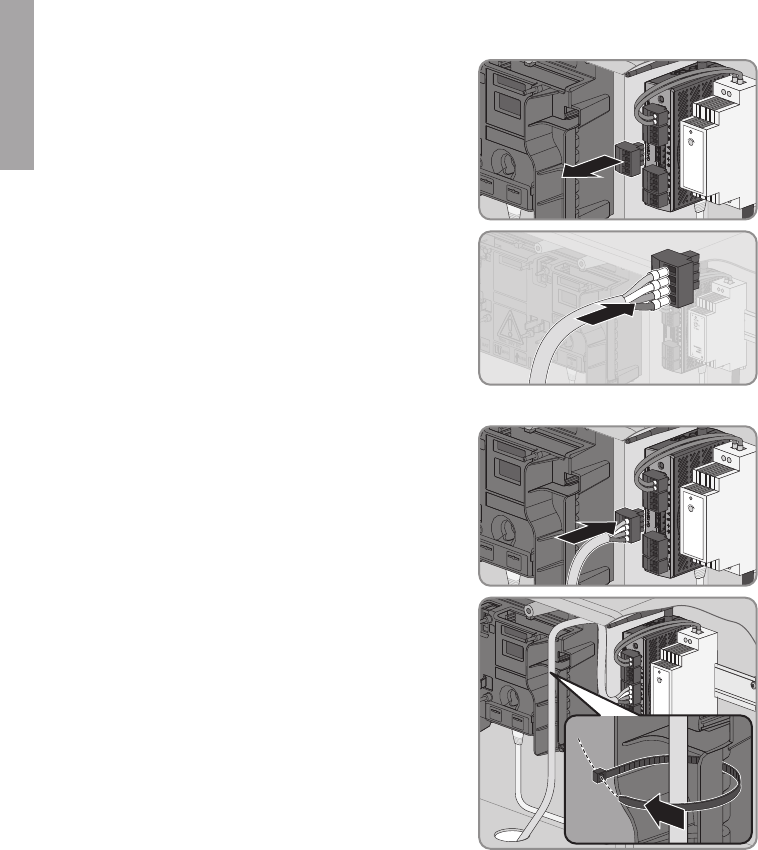

5. Pull the terminal block for the connection of the
gateway out of the jack GATEWAY of the
Cloud Connect Advanced.
TOP
FCC ID: SVF-KP
IC: 9440A-KP20
A
B
X2
L
N
+
_
DC OK
+V DAJ
+
100-240V
AC
0.88A
50/60Hz
6. Connect the conductors to the terminal point of
the terminal block and tighten the screw
terminals with the screwdriver.
TOP
DISPLAY
BA
T
Max. 30V DC
USB
FCC ID: SVF-KP
IC: 9440A-KP20
MFR
A
B
X1
X2
L
N
+
_
DC OK
+V DAJ
+
100-240VAC
0.88A
50/60Hz
7. Ensure that the conductors sit securely in the terminal point of the terminal block.
8. Plug the terminal block into the jack GATEWAY
of the Cloud Connect Advanced.
TOP
FCC ID: SVF-KP
IC: 9440A-KP20
A
B
X2
L
N
+
_
DC OK
+V DAJ
+
100-240V
AC
0.88A
50/60Hz
9. Attach the conductor to the communication
assembly using a cable tie. Place the cable tie
around the conductor and lead one end of the
cable tie through the respective opening in the
bracket of the communication assembly and
tighten the cable tie.
TOP
FCC ID: SVF-KP
IC: 9440A-KP20
A
B
X2
L
N
+
_
DC OK
+V DAJ
+
100-240V
AC
0.88A
50/60Hz
FCC ID: SVF-KP
IC: 9440A-KP20
5.3 Placing the Insulating Hose over the AC Conductors
To prevent touching of communication conductors and live conductors, the live conductors have to
be insulated with the insulating hose.
