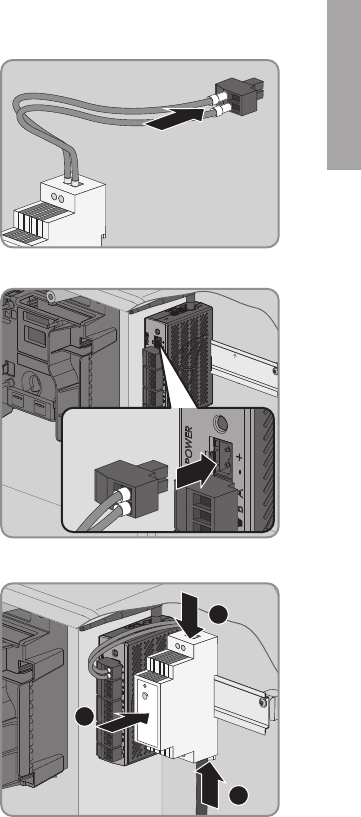

6. Connect the positive and negative terminal to the
terminal block in accordance with the labeling.
+
+
_
+
_
7. Ensure that the conductors sit securely in the terminal point of the terminal block.
8. Plug the terminal block into the jack POWER of
the Cloud Connect Advanced.
FCC ID: SVF-KP
IC: 9440A-KP20
A
B
X2
TOP
+
_
Mounting the Power Supply Unit on the Top-Hat Rail
• Place the power supply unit on top of the DIN
rail, then mount and lock into place. Maintain
distance of 13mm (0.5in) between the Cloud
Connect Advanced and power supply unit. This
ensures sufficient ventilation of the Cloud
Connect Advanced.
TOP
L
N
+
_
DC OK
+V DAJ
+
100-240V
AC
0.88A
50/60Hz
2
1
3
5.2 Connecting the Cloud Connect Advanced
Procedure:
• Connect the network cables.
• Connect the gateway.
5 Connection
