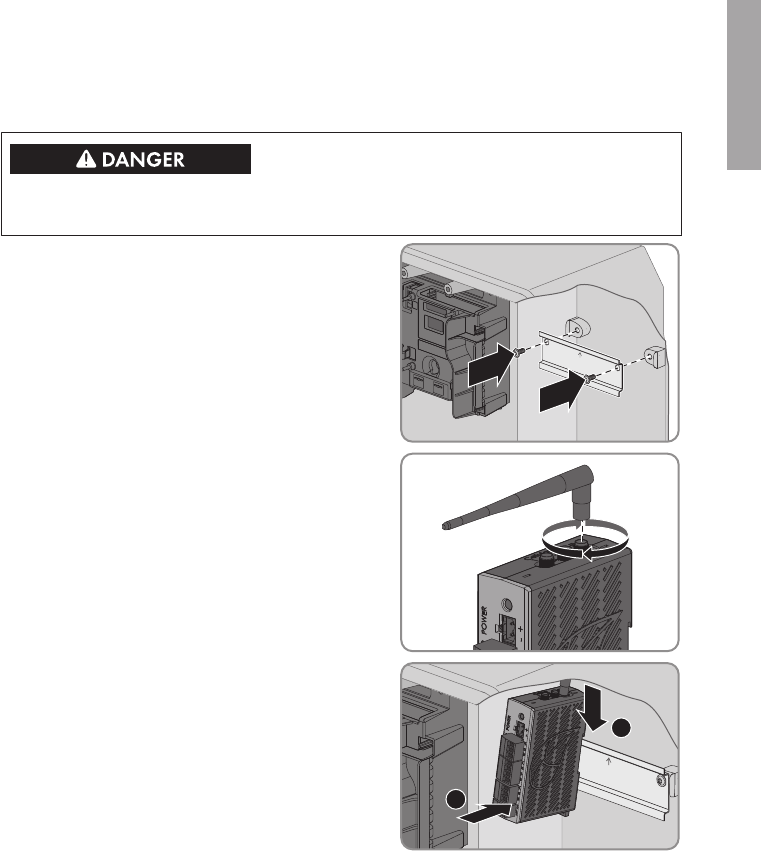

4.2 Mounting the Rooftop Communication Kit
Procedure:
Danger to life due to electric shock
• Disconnect the inverter from all voltage sources (see inverter manual).
1. Tighten the DIN rail to the tap holes in the
inverter using both M5x6 screws and a Torx
screwdriver (TX25) (torque: 2,8Nm ± 0,2Nm
(24,78in-lb ± 1.77in-lb). The arrow above the
labelling "TOP" on the DIN rail must point
upwards towards the connecting terminal plate
of the AC connection.
FCC ID: SVF-KP
IC: 9440A-KP20
A
B
X2
TOPTOP
2. Screw the WLAN antenna into the connector
WLAN at the Cloud Connect Advanced. Tighten
the antenna in such a way that the tip of the
antenna points towards the front edge of the
enclosure of the Cloud Connect Advanced.
3. Place the Cloud Connect Advanced to the very
left at the enclosure wall on the DIN rail and
hook it in. The WLAN antenna of the Cloud
Connect Advanced must not touch the AC
conductors.
TOP
2
1
4. Ensure that the Cloud Connect Advanced is securely in place.
4 Mounting
SMA Solar Technology America LLC
Installation Manual 15RoofCommKit-P1-US-IA-xx-11
