4 Mounting
4.1 Mounting Position and Cable Route
COM
DC-in
SPS
AC-out
D-IN
SPS
A B
M1
X1 X2
M2
ANT.
FCC ID: SVF-KP20
IC: 9440A-KP20
Max. 30V DC
DISPLAY
BAT MFR
USB
C
H
G
B
A
D
F
E

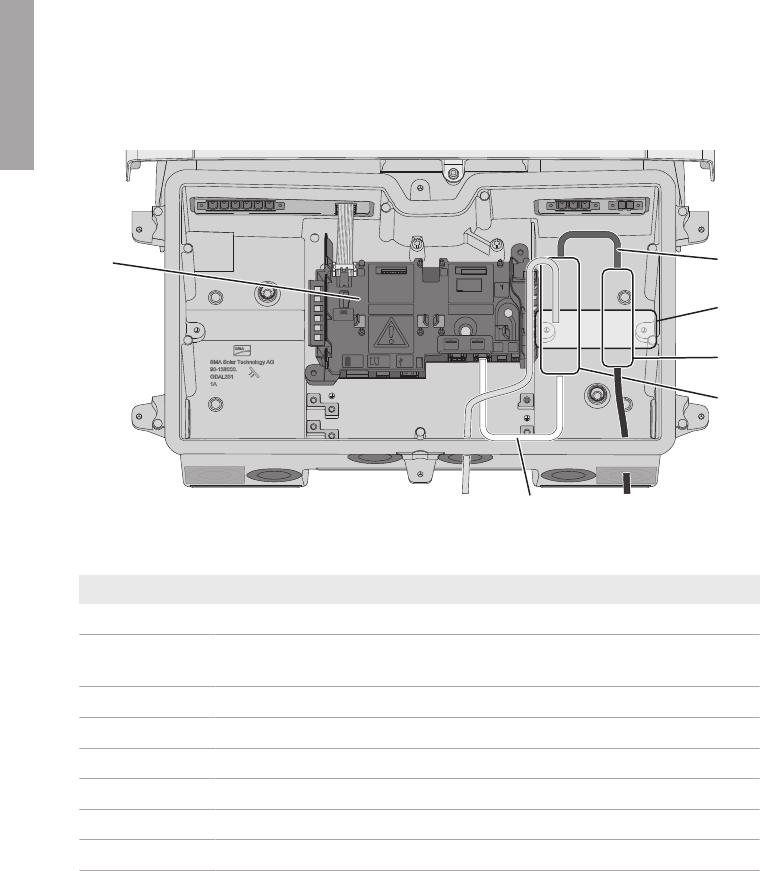

Figure 3 : Interior view of the open enclosure part of the inverter with mounting position and cable route
Position Designation
A Communication assembly
B Cable route for connecting the output of the power supply unit and the
POWER connection of the Cloud Connect Advanced.
C Mounting position of the DIN rail
D Position of the power supply unit on the DIN rail
E Position of the Cloud Connect Advanced on the DIN rail
F Cable route for connection of the electricity supply of the power supply unit
G Cable route for connecting the network cable
H Cable route for connecting the gateways to the Cloud Connect Advanced
