Installation Guide

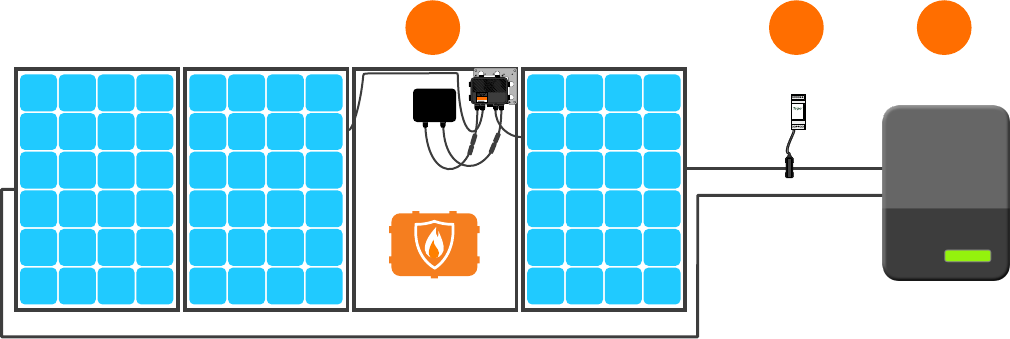

SYSTEM OVERVIEW: TS4-R-F

The TS4-R-F requires a Tigo RSS Transmitter or inverter with built-in transmitter for

operation.

• TS4-R-F mounting is recommended on the upper right as shown, but can be

placed elsewhere on the frame or bolted to the racking if needed.

• TS4-R-F cable glands must not be facing up.

• Allow clearance between PV module and mounting surface for air

circulation around TS4-R-F.

• Do not drill additional mounting holes in the frame or metal bracket.

Note: connect modules to TS4-R inputs before connecting outputs

RSS

Transmitter

4-123A

TS4-R-F

1 2 3
