TS4-F RAPID SHUTDOWN SYSTEM

4

• NEC 2017 690.12 Rapid shutdown

compliant

• Module-level deactivation

• PLC communication

• Plug & play, no conguration required

• Rapid Shutdown System Transmitter for

rapid shutdown activation of TS4-F, TS4-R-F,

or TS4-A-F units

• The external device that provides a keep-

alive signal to the TS4-F via Power Line

Communication

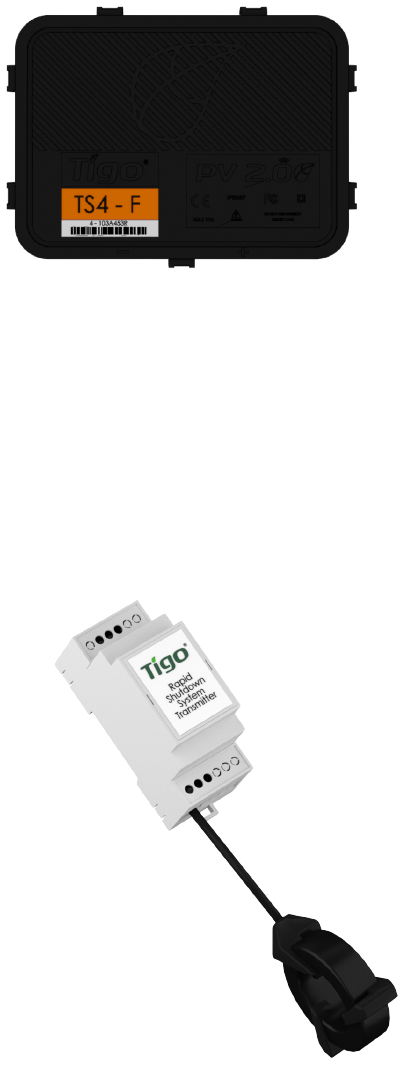

TS4-F, TS4-R-F, TS4-A-F

RSS Transmitter

Module-Level Power Electronics:

Transmitter:
