Installation Guide

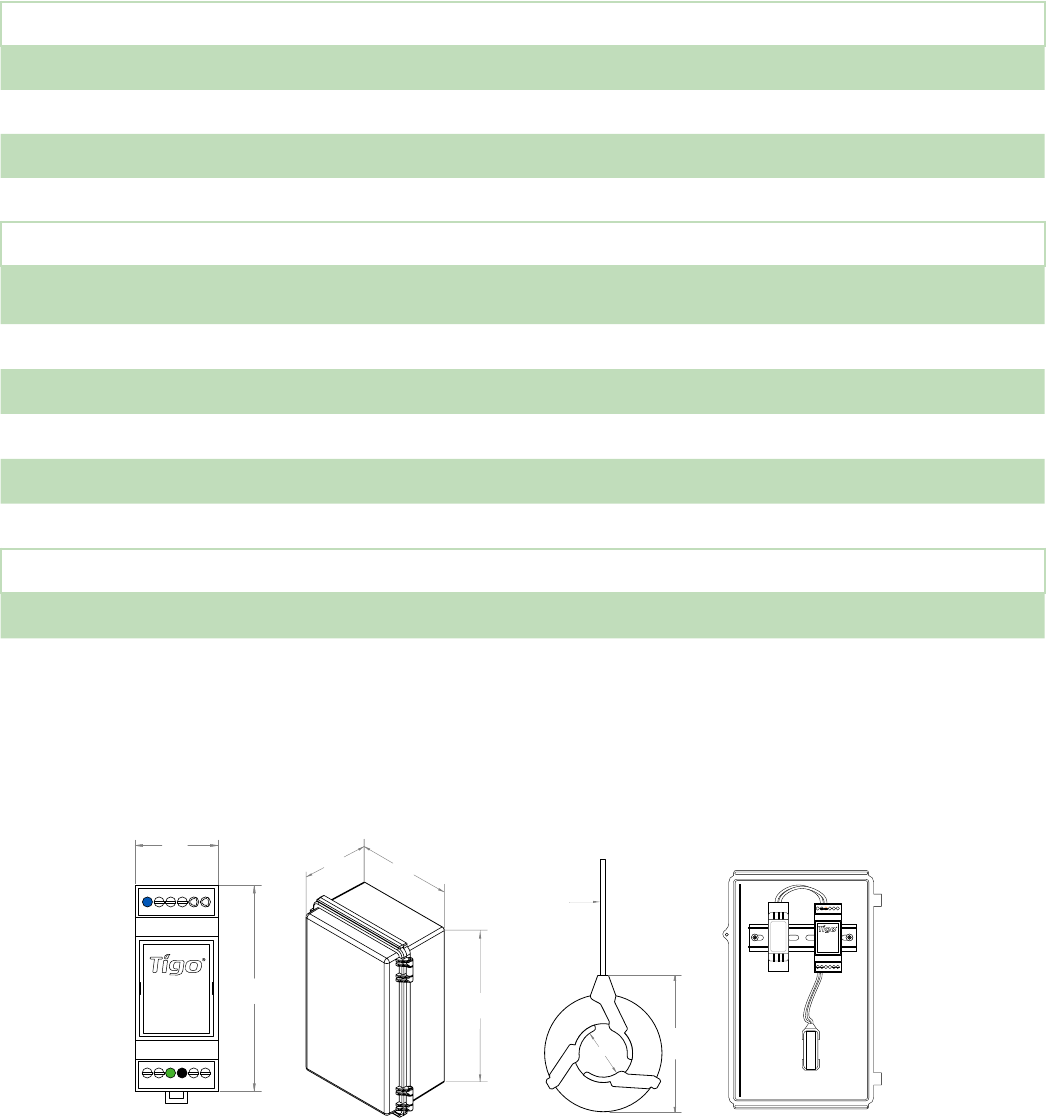

TECHNICAL SPECIFICATIONS –
RSS TRANSMITTER OUTDOOR KIT
27
Electrical Ratings RSS Transmitter
Input
Input Voltage
12V
DC
Input Current 1A
Average Supply Power 0.85W
Dimensions(Transmitter only) 90.2mm x 36.3mm x 57.7mm
RSS Core
Maximum Current
100A per Core
(Single Core: 100A, Dual Core: 200A)
Maximum MPPT String Voltage 1500V
DC
Internal Opening for Wires ~25mm
Outside Dimensions 59mm
Maximum Number of Strings per Core 10
Maximum String Length 30 modules
Environmental
Temperature -40°C to 85°C
Recommended max. torque 0.79 N/m for wiring
90.2
36.3
270
170
110
NN
LL
-
+
Rapid
Shutdown
System
Transmitter
RSS Transmitter Outdoor Enclosure RSS Core Installation Example
All dimensions in mm.
25.0 min
18 AWG
73
max
610
Rapid
Shutdown
System
Transmitter
