Installation Guide

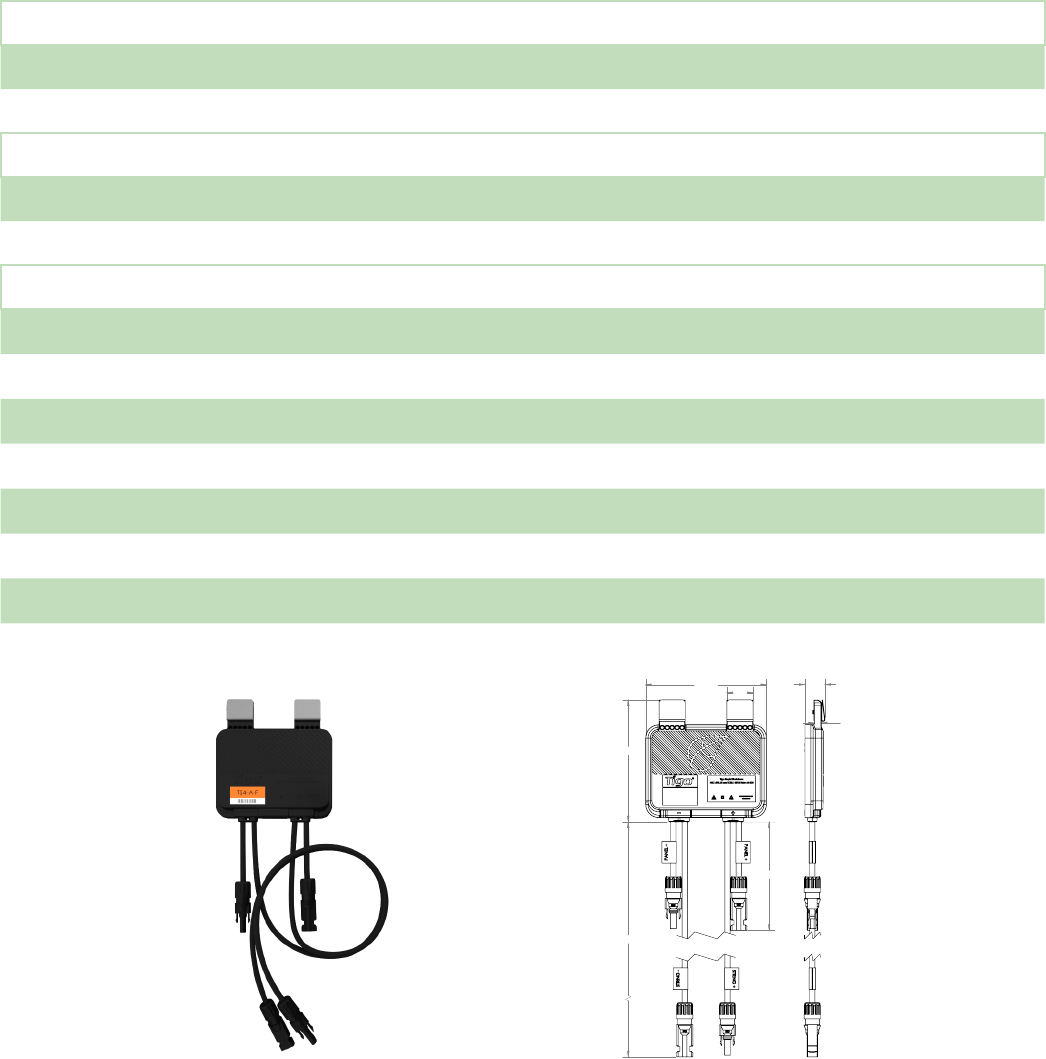

TECHNICAL SPECIFICATIONS – TS4-A-F
24
Specications TS4-A-F Fire Safety
Environmental
Operating Temperature Range -40°C to +85°C (-40°F to +185°F)
Outdoor Rating IP68, NEMA 3R
Mechanical
Dimensions 138.4mm x 139.7mm x 22.9mm
Weight 490g
Electrical
Input Voltage 16 - 90V
Maximum Continuous Input Current (I
MAX
) 12.5A
Maximum Power 500W
Output Cable Length 1.2m (standard), other lengths available
Connectors MC4 compatible (standard)
Communication Type PLC
Maximum System Voltage 1500V
Rapid Shutdown UL Listed (NEC 2014 & 2017 690.12) Yes
Specify system voltage when ordering (1000V / 1500V) for appropriate cables
& connectors.
Rapid shutdown activation requires RSS Transmitter.
120
±10
1200
±10
138.4
30
139.7
8
22.9
