Installation Guide

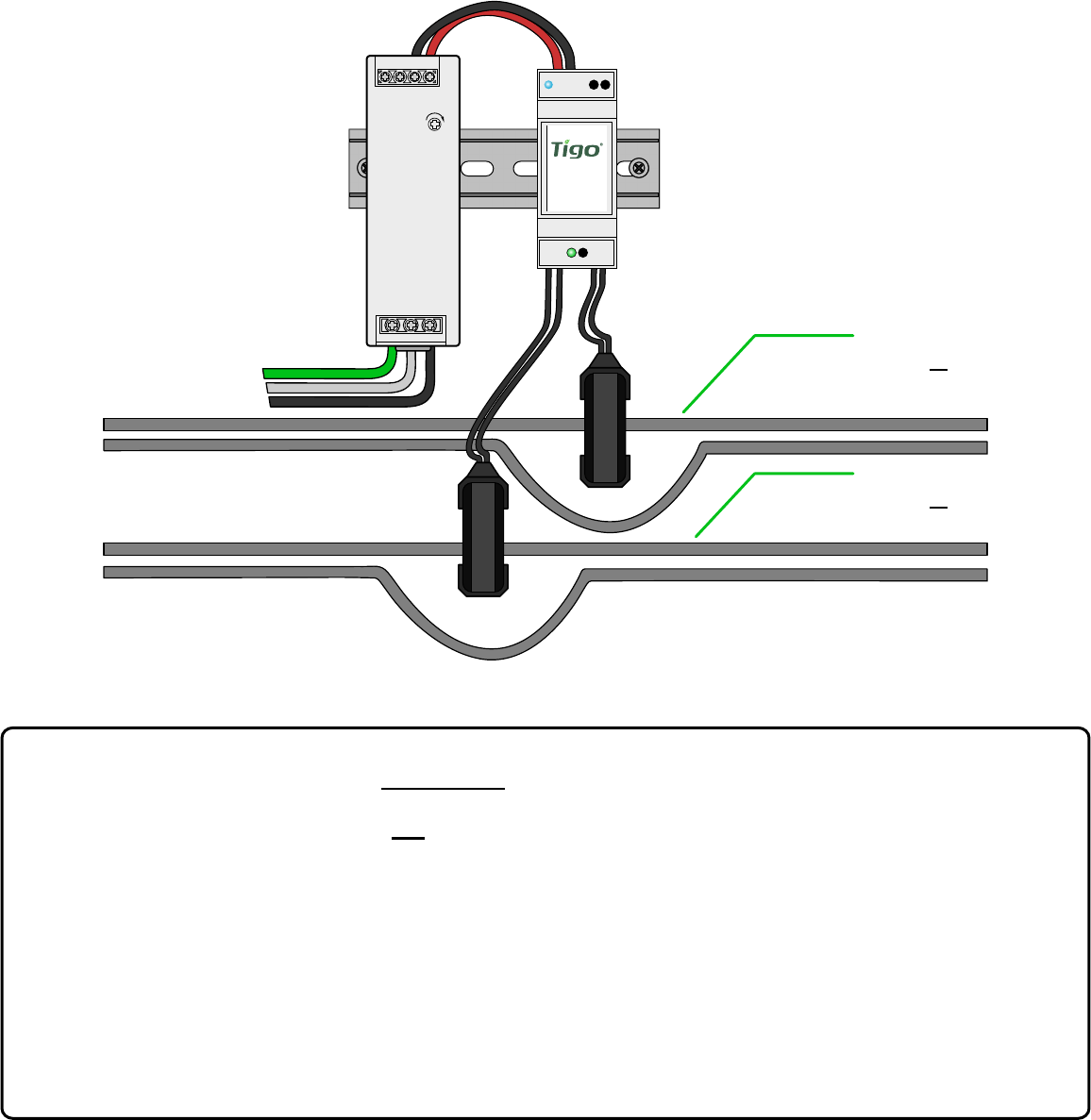

RSS TRANSMITTER COMMERCIAL WIRING
NN
LL
-
+
RSS
Transmitter
+ V ADJ
+V
G L2 L1
-V
· Pass either positive or negative homerun through RSS Cores
· Connect wires to AC side of power supply
· Turn on AC power to Transmitter power supply to activate
keep-alive signal
Note: Install TS4-F before powering on RSS Transmitter
Homerun
Only (+) or (-)
through RSS Core
Only (+) or (-)
through RSS Core
Homerun
Max number of strings per RSS Core: 10
Max string length: 30 modules
Max current per RSS Core: 150A
Max cable length from inverter (+) to inverter (-): 1000ft (300m)
