Installation Guide

RSS TRANSMITTER COMMERCIAL INSTALLATION
Note: Install TS4-F before powering on RSS Transmitter

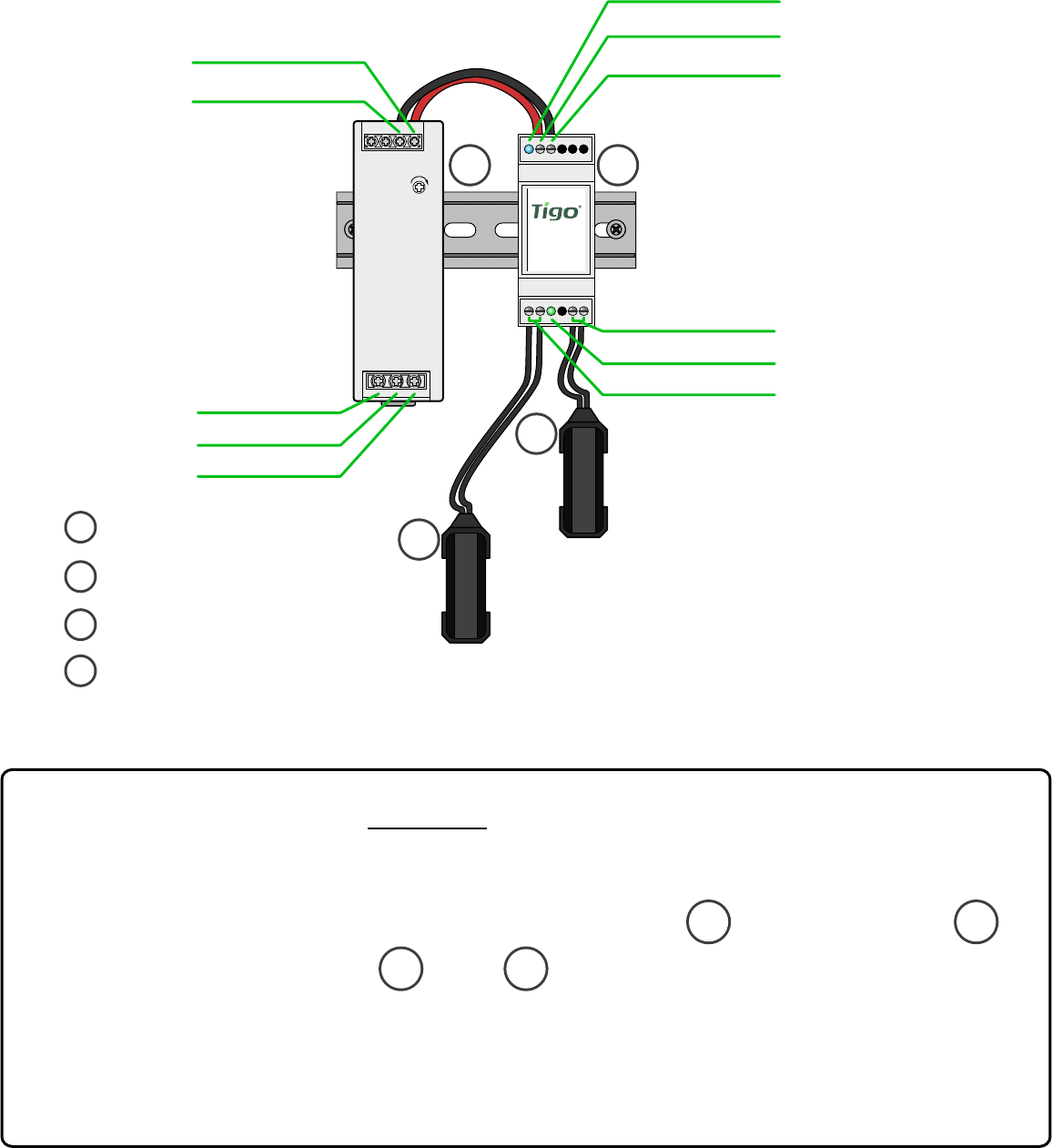

· Mount RSS Transmitter and power supply on DIN rail
· Connect DC leads from power supply (1) to transmitter (2)
· Connect RSS Core (3) and (4) to transmitter
3 4
1 2
NN
LL
-
+
1 DIN Rail PSU
200-500V
AC
Power Supply
2 RSS Transmitter
3
4
RSS Core (CT)
RSS Core (CT)
RSS Core inputs
Line
RSS Core inputs
Ground
LED (Signal)
Neutral
LED (Power)
+12V
DC
+V
IN
-12V
DC
GND
RSS
Transmitter
+ V ADJ
+V
G L2 L1
-V
Place rapid shutdown system label no more than 1m (3ft) from RSS Transmitter
or AC disconnect if not at same location.
1 2
3
4
Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements.
