Installation Guide

RSS TRANSMITTER INSTALLATION –

DUAL RSS CORE

Note: Install TS4-F before powering on RSS Transmitter

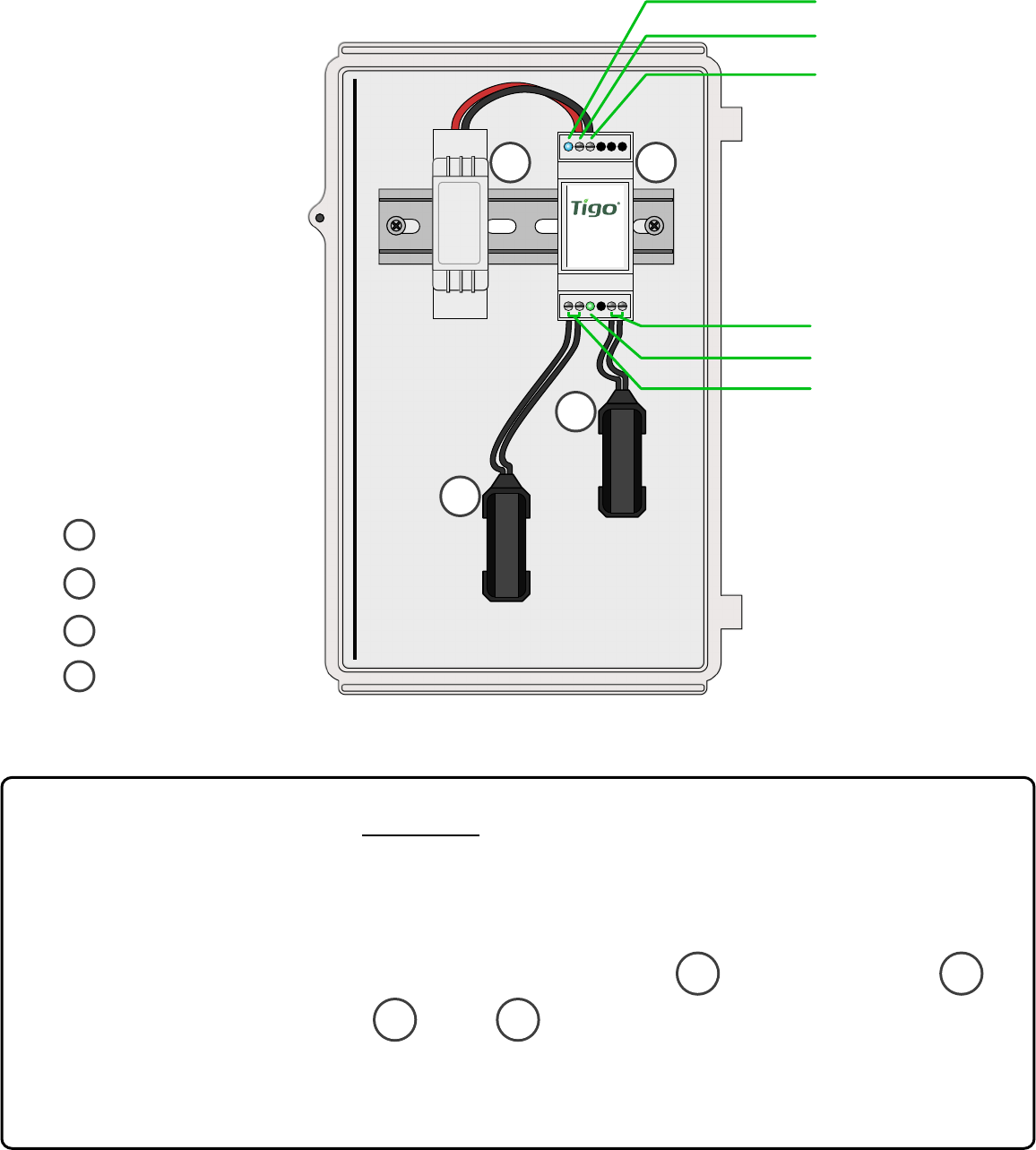

· Drill holes in enclosure for conduit (see drilling guide for placement)

· Mount RSS Transmitter and power supply on DIN rail

· Connect DC leads from power supply (1) to transmitter (2)

· Connect RSS Core (3) and (4) to transmitter

3 4

1 2

1 DIN Rail PSU

2 RSS Transmitter

RSS Core (CT)

RSS Core inputs

LED (Signal)

LED (Power)

GND

RSS

Transmitter

1 2

Place rapid shutdown system label no more than 1m (3ft) from RSS Transmitter

or AC disconnect if not at same location.

Suggested locations

for conduit

Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements.
