Installation Guide

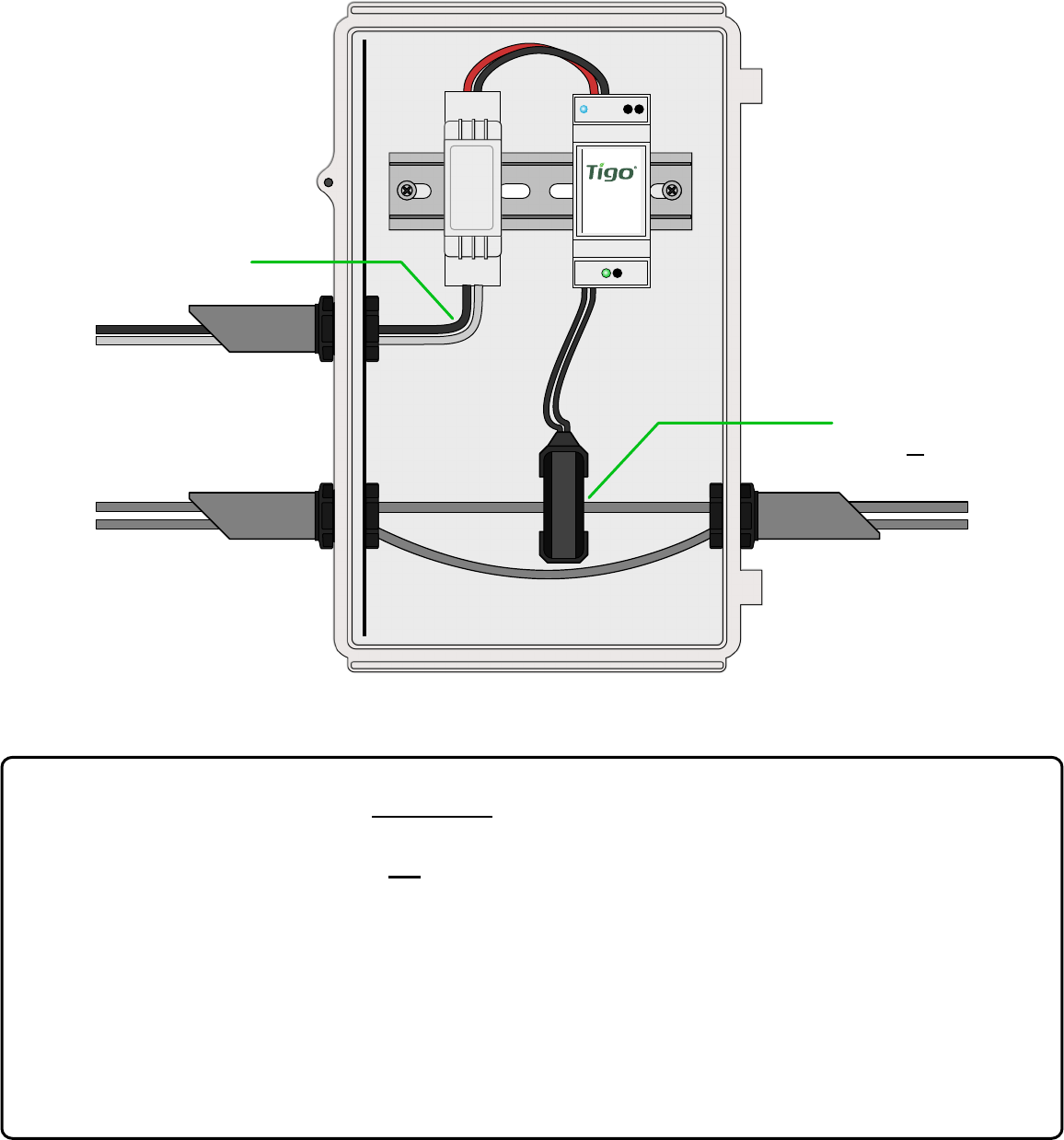

RSS TRANSMITTER WIRING –
SINGLE RSS CORE
· Pass either positive or negative homerun through RSS Core
· Connect wires to AC side of power supply
Note: Install TS4-F before powering on RSS Transmitter
NN
LL
- +
RSS
Transmitter
Homerun
Only (+) or (-)
through RSS Core
AC Wires for
Power Supply
Max number of strings per RSS Core: 10
Max string length: 30 modules
Max current per RSS Core: 100A
Max cable length from inverter (+) to inverter (-): 1000ft (300m)
