Installation Guide

RSS TRANSMITTER INSTALLATION –
SINGLE RSS CORE

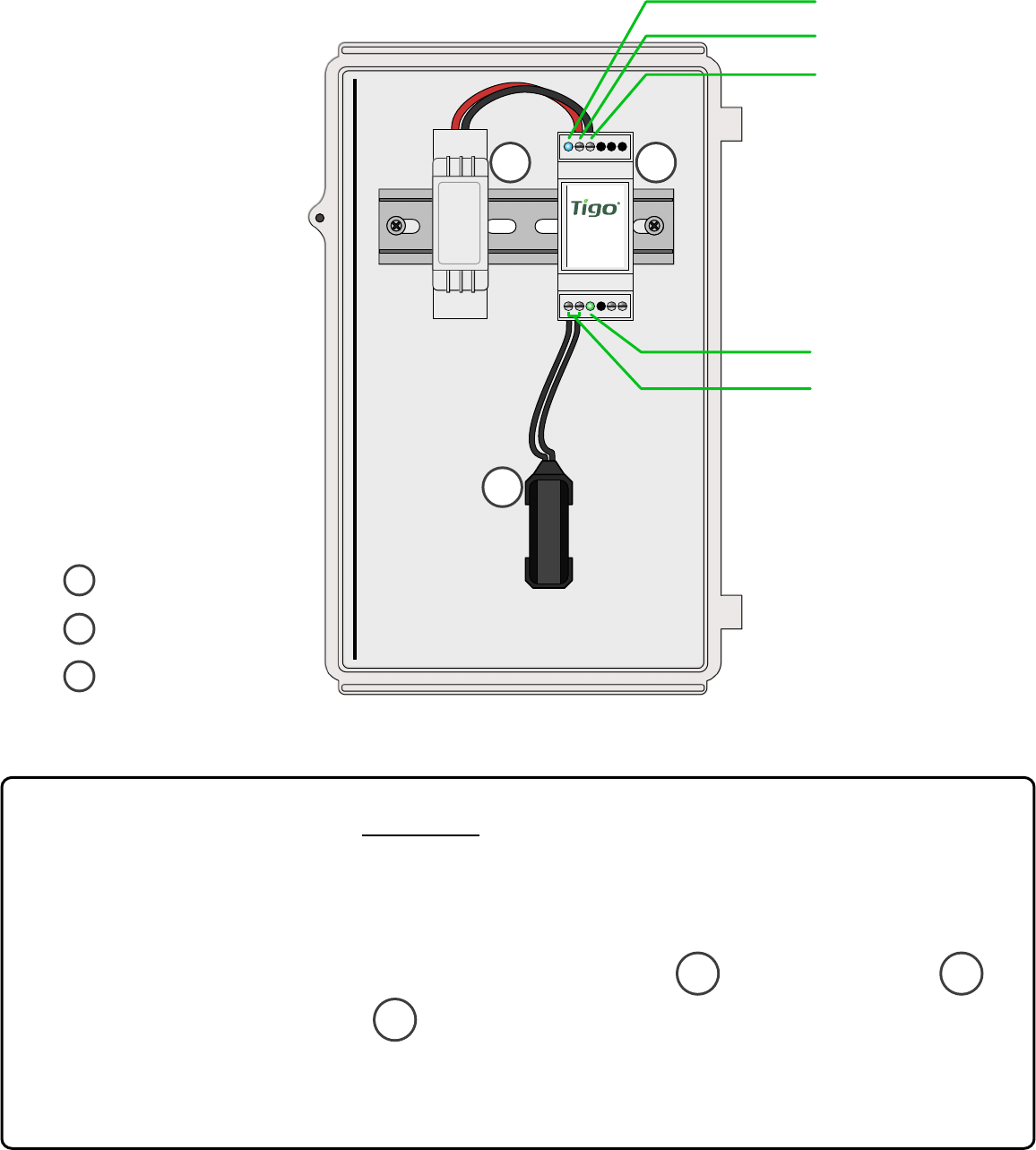

· Drill holes in enclosure for conduit (see drilling guide for placement)
· Mount RSS Transmitter and power supply on DIN rail
· Connect DC leads from power supply (1) to transmitter (2)
· Connect RSS Core (3) to transmitter
Note: Install TS4-F before powering on RSS Transmitter
Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements.
NN
LL
- +
RSS
Transmitter
1 2
3
RSS Core inputs
LED (Signal)
LED (Power)
+V
IN
GND
3 RSS Core (CT)
1 DIN Rail PSU
2 RSS Transmitter
3
1 2
Place rapid shutdown system label no more than 1m (3ft) from RSS Transmitter
or AC disconnect if not at same location.
85-264V
AC
PSU
*
* *
*
Suggested locations
for conduit
