2 The Repeater
2.1 Applications
With the repeater, you can increase the Sunny Beam's range in order to reach the
inverters under problematic ambient conditions. The repeater can be simply integrated
into the existing transmission path from the Sunny Beam to the inverters. The repeater
requires a wall socket for the power supply.
2.2 Functions
Connection to the inverters and to the Sunny Beam via:
• Radio
(up to 325 ft in open air, up to 100 ft in buildings, maximum 4 inverters)
Supported inverters:
• The repeater supports all inverters that the Sunny Beam supports.
Number of inverters supported:
•up to 4
Connection to the power supply via:
• USB plug-in power supply (max. 6 ft)
Display of system states:
• via 4 light-emitting diodes

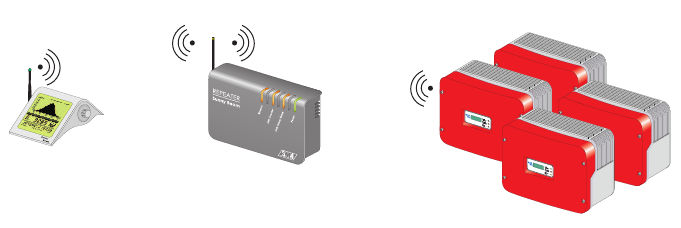

RepeaterSunny Beam U Inverters
