6 Explanation of the LEDs

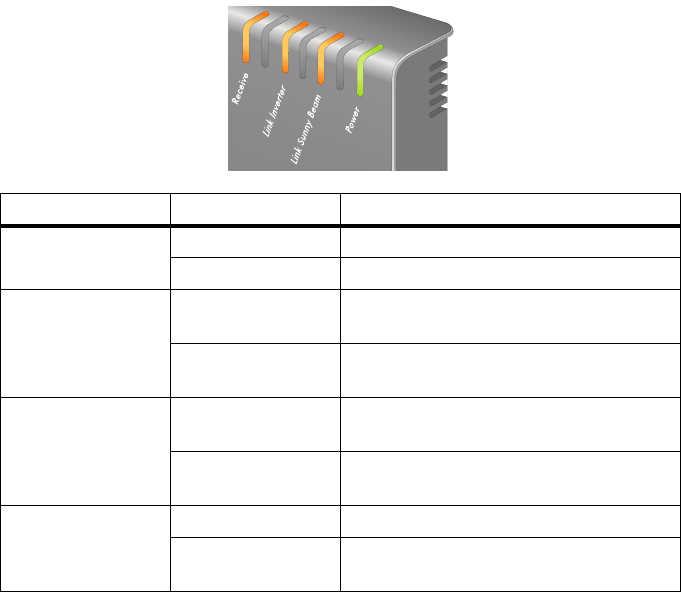

The repeater has 4 LEDs, with which the status of the device can be ascertained. The
repeater is equipped with the following LEDs:
•Receive
• Link Inverter (connection to the inverter)
• Link Sunny Beam (connection to the Sunny Beam)
• Power (power supply)
This section explains the repeater's various light signals and flash signals.
LED Status/Color Display
Receive flashes orange Data are being received.
off No data are being received.
Link Inverter shines orange The repeater has received data from the
inverter.
off The repeater is not receiving any data
from the inverter.
Link Sunny Beam shines orange The repeater has received data from the
Sunny Beam.
off The repeater is not receiving any data
from the Sunny Beam.
Power shines green The power supply is ok.
off (All LEDs are off), no power supply is
present.
