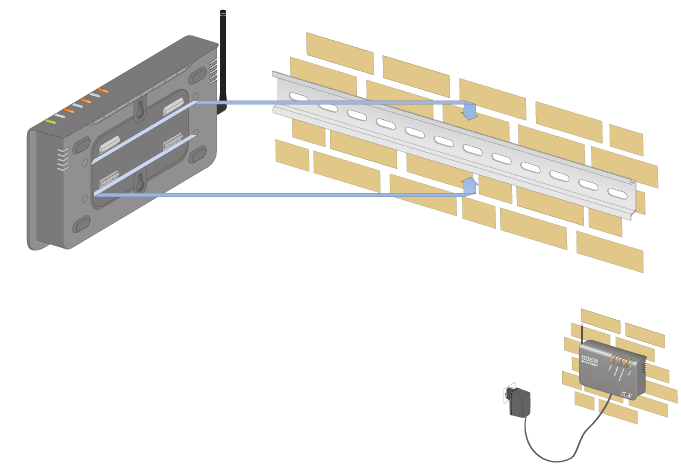

5.3 Top Hat Rail Installation
1. Pull the USB power supply plug out of the socket.
2. Pull the USB plug out of the repeater.
3. Fasten a top hat rail onto the wall. Observe the USB power supply's cable length.
4. Hook both lower retainers of the repeater under the lower edge of the top hat rail.
5. Push the repeater upwards.
6. Hook the repeater's two upper catches over the upper edge of the top hat rail.
7. Plug the USB power supply's USB plug into the socket on
the lower edge of the repeater's housing.
8. Then plug the USB power supply's plug into the socket.
All LEDs on the repeater briefly shine green. The repeater
starts up. This procedure takes approximately 1 minute.
