5.2 Wall Mounting
1. Pull the USB power supply plug out of the socket.
2. Pull the USB plug out of the repeater.
3. Use the drilling template to determine the position of the repeater on the wall.
Observe the USB power supply's cable length.
4. Mark the position of the drill holes.
5. Drill the holes and install the screws. Use screws with a shank diameter of
0.13 inch to 0.17 inch.
6. Leave about 0.25 inch clearance between the screw head and the wall.

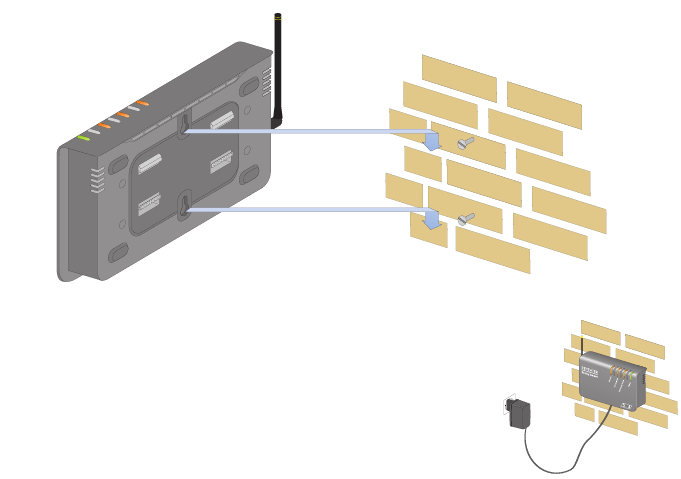

7. Hang the repeater on the screws (see figure).
8. Plug the USB power supply's USB plug into the socket on
the lower edge of the repeater's housing.
9. Then plug the USB power supply's plug into the socket.
All LEDs on the repeater briefly shine green. The repeater
starts up. This procedure takes approximately 1 minute.
