4.4.2 From Floor to Floor
If the radio connection within a building is insufficient due to the devices being too far
apart, or because of excessive attenuation through ceilings and walls, you can use the
repeater to bridge a transmission gap, or to improve a poor radio connection.
Sunny
Beam
B
e
t
r
ie
b
O
p
e
r
a
t
io
n
E
r
d
s
c
h
l
u
s
s
E
a
r
th
F
a
u
l
t
S
t
ö
r
u
n
g
Fa
il
u
r
e

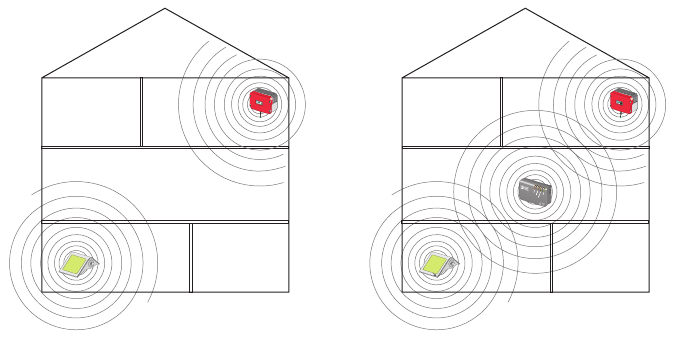

Transmission gap
