Owner manual

Inserting Cyclone/Cassette Assembly in 225-1
Cassette Holder (Figure 2)
1. Insert the cyclone body through
the large opening of the casse e
holder.
2. Ensure the cyclone/casse e
assembly is seated fi rmly in the
holder by inserting the cyclone’s
small round nodule on the rim
into the notch in the casse e
holder.
3. Remove the plug from the
casse e outlet.
4. Secure the cyclone/casse e
assembly in the holder by
stretching the spring-loaded
hold-down plate over the
casse e outlet.
5. Insert the holder’s Luer adapter
(located on the end of the rubber
tubing) into the casse e outlet.
Calibration
Option 1: Using a Calibration Jar (Figure 3)
1. Prepare a cyclone/casse e assembly (see Figure 1). Ensure grit pot remains
on cyclone body during calibration.
SKC recommends using the smallest calibration jar possible. To
achieve this, do NOT use Cassette Holder 225-1 during calibration.
2. Place cyclone/casse e assembly into an airtight calibration jar that contains an
inlet and outlet (SKC Cat. No. 225-111, see Figure 3).
3. Using fl exible tubing, connect inlet of calibrator to inlet of calibration jar.
4. Run tubing from outlet of cyclone/casse e assembly through outlet of
calibration jar and to the inlet of a sample pump. If using the SKC 225-111 jar,
connect the Luer adapter inside the jar to the cyclone/casse e outlet. Connect
jar outlet to inlet of a sample pump.
Figure 3
Tygon tubing
Rubber tubing
Filter cassette
Filter cassette
holder
Grit pot
Collar clip
Luer adapter
GS cyclone
Spring-loaded
hold-down plate
Cassette outlet

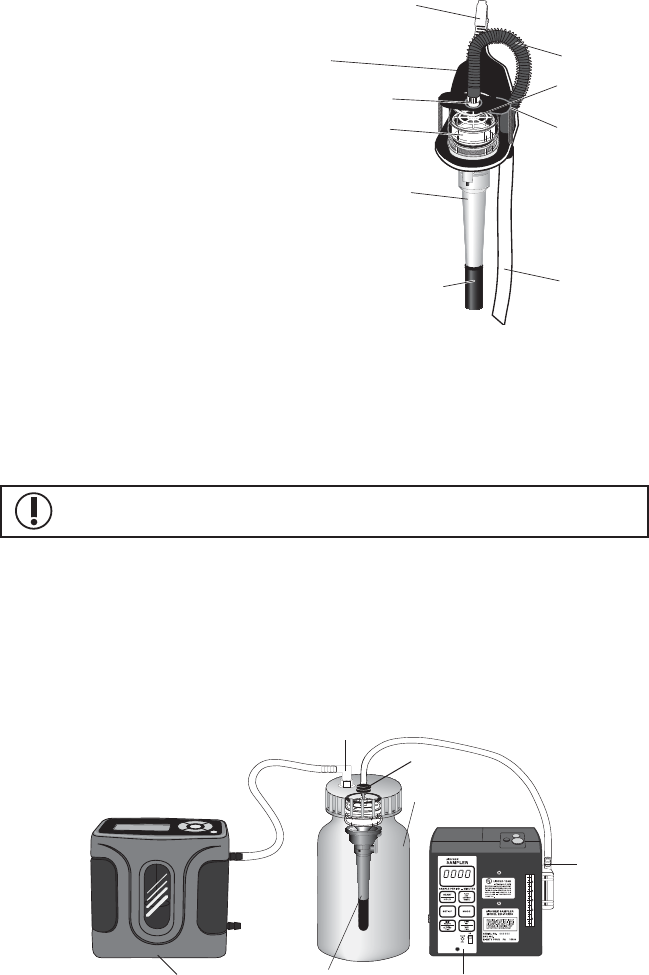

Figure 2
GS-3 Cyclone/Cassette Assembly
in Holder (Cat. No. 225-1)
Calibrator
GS-3 Cyclone/cassette
assembly inside calibration jar
Inlet
Inlet
Sample pump
Outlet
Multi-purpose
calibration jar
(225-111)
