Operation Manual

filling in the fields, just click "Clear" and both "MAC Address" and "Comment" fields
will be cleared.
• Remove an address from the list: If you want to remove a MAC address from the
"Current Access Control List ", select the MAC address that you want to remove in
the list and then click "Delete Selected". If you want to remove all the MAC addresses
from the list, just click the "Delete All" button. Click "Reset" will clear your current
selections.
Click Apply at the bottom of the screen to save the above configurations. You can now
configure other sections by choosing Continue, or choose Apply to apply the settings and
reboot the device.

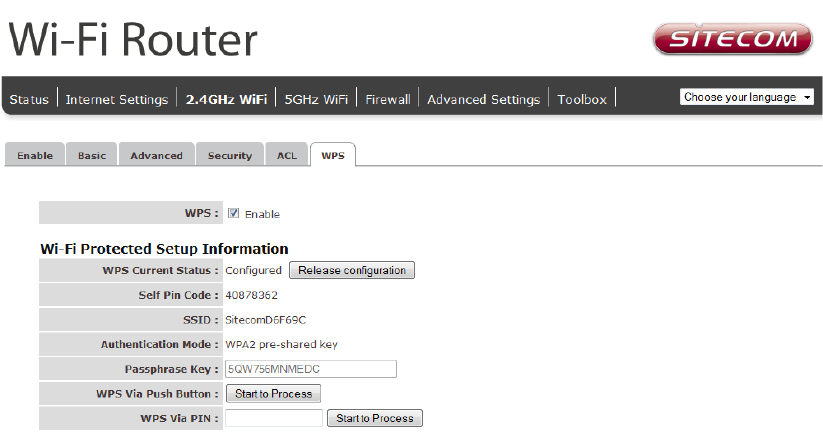

WPS
Wi-Fi Protected Setup (WPS) is the simplest way to establish a connection between the wireless
clients and the wireless router. You don’t have to select the encryption mode and fill in a long
encryption passphrase every time when you try to setup a wireless connection. You only need
to press a button on both wireless client and wireless router, and WPS will do the rest for you.
The wireless router supports two types of WPS: WPS via Push Button and WPS via PIN code. If
you want to use the Push Button, you have to push a specific button on the wireless client or in
the utility of the wireless client to start the WPS mode, and switch the wireless router to WPS
mode. You can simply push the WPS button of the wireless router, or click the ‘Start to Process’
button in the web configuration interface. If you want to use the PIN code, you have to know
the PIN code of the wireless client and switch it to WPS mode, then fill-in the PIN code of the
wireless client through the web configuration interface of the wireless router.
• WPS: Check the box to enable WPS function and uncheck it to disable the WPS
function.
• WPS Current Status: If the wireless security (encryption) function of this wireless
router is properly set, you’ll see a ‘Configured’ message here. Otherwise, you’ll see
‘UnConfigured’.
• Self-Pin Code: This is the WPS PIN code of the wireless router. You may need this
information when connecting to other WPS-enabled wireless devices.
