Operation Manual

Wireless Settings
You can set parameters that are used for the wireless stations to connect to this router for the
2.4 GHz radio or 5 GHz radio. The parameters include Mode, ESSID, Channel Number and
Associated Client.

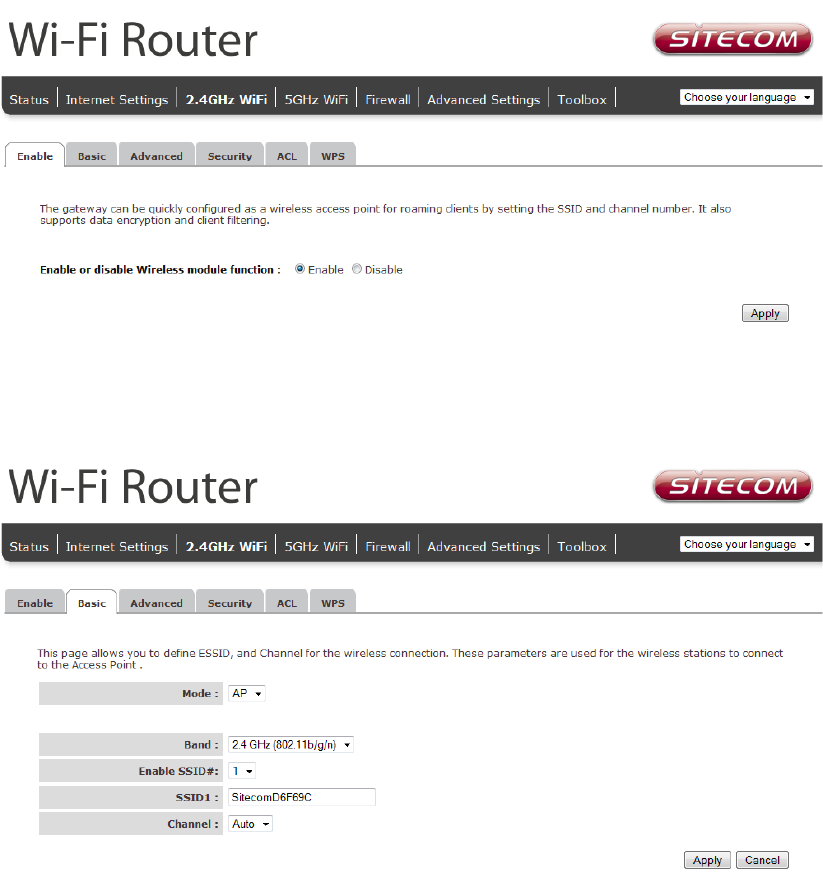

Wireless Function
Enable or Disable Wireless function here. Click Apply and wait for module to be ready & loaded.
Basic Settings
• Band: Allows you to set the AP fixed at 802.11b or 802.11g mode. You can also select
B+G mode to allow 802.11b and 802.11g clients at the same time. For the 5GHz
mode you can set 802.11a, 802.11n, 802.11a/n or 802.11ac mode.
• Guest Network: Enable this to activate the Guest Network. Devices connected to the
Guest network will have Internet connection but no access to the main network and
cannot communicate with each other
