NAV Sensors Menu

This menu provides calibration status information.

The navigation radio sensors need to be calibrated. This process is performed constantly durin g driving.

The unit adapts to the external and internal sensors as well as to the tire sizes of the car. This calibration data is

saved in the memory. A calibration status of 3 is possible after driving a couple of hundred yards.

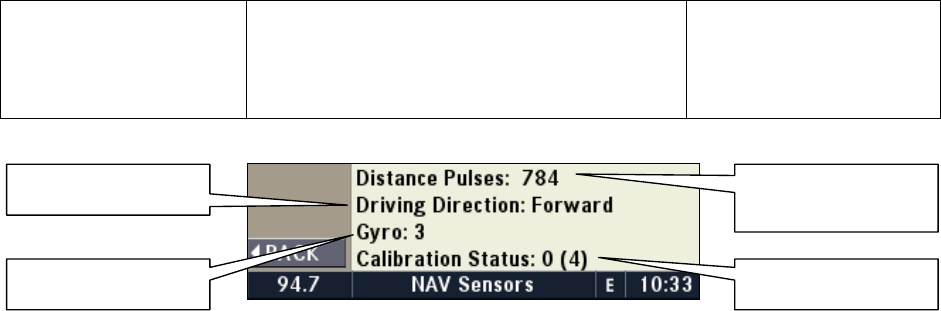

Driving direction

Spee d sign al

counter

Gyroscope data Calibration Status
