10.12.5.2 Audio
See 4. 7 Audi o Sett ings
10.12.5.3 Re-Calibration
The navigation radio is self-calibrating.
In the rare case that the radio has been removed and reinstalled in another car the calibration can be reset to
factory settings.
1012.0503.01

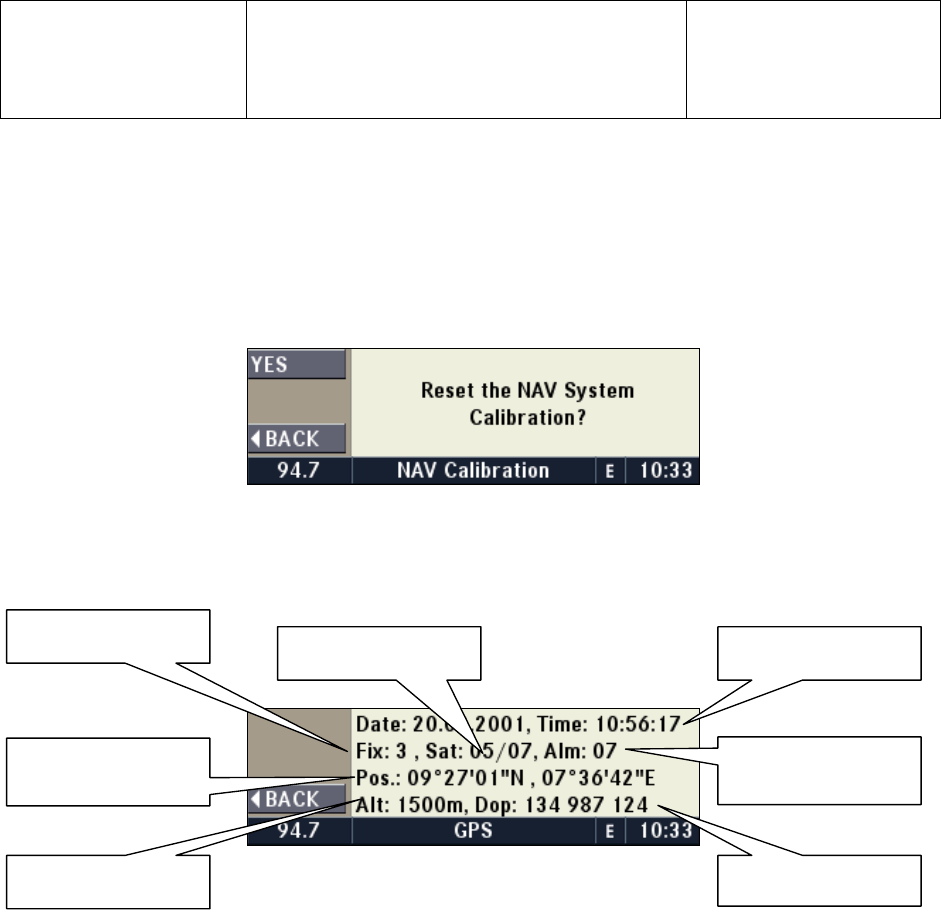

Navigation Re-Calibration Menu
10.12.5.4 GPS
This menu provides service information for the 12 channel GPS receiver.
1012.0504.01
GPS Menu
UTC Date and Time: Universal Time Coordinated displayed in “Date: dd.mm.yyyy” “Time: hh:mm:ss”
Dimensional fix: “Fix: 0”: Unable to calculate position.
“Fix: 1”: A 1 dimensional posit ion is available.
“Fix: 2”: A 2 dimensional posit ion is available.
“Fix: 3”: A 3 dimensional posit ion is available.
Almanacs: Each GPS satellite transmits almanac data to the navigation radio,
showing the orbital information for the satellites. The radio keeps the almanac file for
each received satellite in its memory. A full satellite constellation is 24 satellites.
Used Satellites: Number of satellites used by the GPS receiver to calculate the position.
Seen Satellites: Number of satellites received (seen).
Altitude: Elevation above sea level.
Geographical position: Latitude, Longitude.
Signal Quality: Dilution of precision is an indicator of the quality of the satellite constellation geometry.
A greater angle between used satellites lowers the DOP and provides more accuracy
calculating the position (Positional, Horizontal and Vertical DOP).
10.12.5.5 Sensors
This menu pr ov ides s ensor inform ation.
UTC Date and Time
Elevation above sea
level
Number of saved
A
lmanac s
Number of Satellites
used / seen
Geog raphic al
posi tion
Signal quality
Satellite
dimensional f ix
