4 General Handling
4.1 User interface elements - radio
0401.0000.01

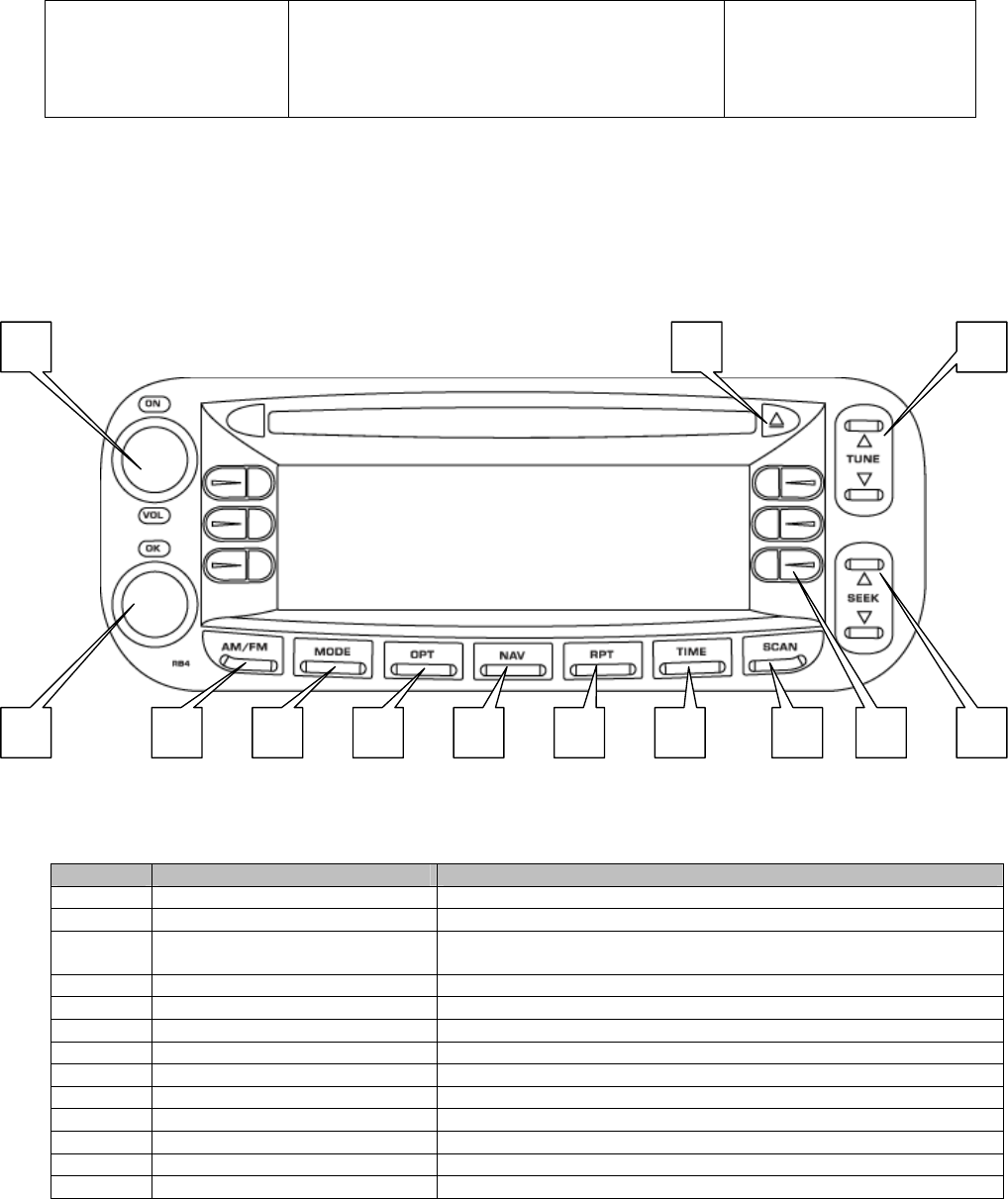

Figure 1 RB4 User Interface Buttons
Button Functi on Description
1 ON / Volume Rotary Knob ON/ OFF Button and Volume Control Knob
2. CD E ject B u tton Eject Button for i ntern al CD Dri ve
3.
Radio Station Tune Button Tune function for radio receiver,
Skip function for CD Drive and CD Changer
4. Audio Seek Button Seek function for radio receiver, Disc Drive and Disc Changer
5. Mu lti F unction Button s Soft ware pr o grammable buttons with multiple functions
6. Audio Scan Button Scan function for radio receiver, Disc Drive and Disc Changer
7. Ti me Menu B utton Shows t ime whe n press e d. Switc hes to T ime Sett ings whe n held.
8. Announcement Repeat Button Repeats the last Navigation Announcement
9. Navigation Mode Button Switches to Navigation Mode; Cancels Route Guidance
10. Option Menu Button Switches to Option and Settings Menus
11. Radio Mode Button Toggle between Radio Modes (CD>CD Changer>DVD Changer)
12. Radio Mode Button Toggle between Radio Modes (FM1>FM2>AM1>AM2)
13. OK / Select Rotary Knob Confirmation Button and Selection Knob
4 13 5
3 1 2
7 8 9 1011 12 6
