Instruction manual

Tillerpilots TP10/TP22/TP32

E04818 Issue 1.0

Note If the dimensions given are not practical for the vessel to which

the Tillerpilot is to be fitted, a range of fitting accessories are

available to facilitate correct installation. (Please refer to sec-

tion 6.4 for more details.)

CAUTION The Tillerpilot houses an internal fluxgate compass and

should therefore be mounted away from sources of magnet-

ic interference, such as the vessel’s steering compass or

external loudspeakers. The minimum safe distance is 1 m

(3 ft 3 in).

The Tillerpilot is mounted using a supplied tillerpin and mount-

ing cup, which allows the unit to be fitted and stowed easily.

To fit the tillerpin, drill a 6.3 mm (0.25 in) hole in the tiller

(ensure that this is on the centerline of the tiller and is vertical).

Drill to a depth that allows only the top 18 mm (0.75 in) to pro-

trude (Fig 5.3). Fix in place using an epoxy adhesive.

Tillerpin

Tiller

18 mm

(0.75in)

Mounting Cup

Hardwood

Reinforcing

To fit the mounting cup, drill a 12.7 mm (0.5 in) hole into the

cockpit seat and mount, so that only the flange protrudes. Ensure

the cup is a tight fit (use an epoxy adhesive) and is supported

over its entire depth – if necessary, reinforce the underside of the

cockpit seat with hardwood or marine plywood (Fig 5.4).

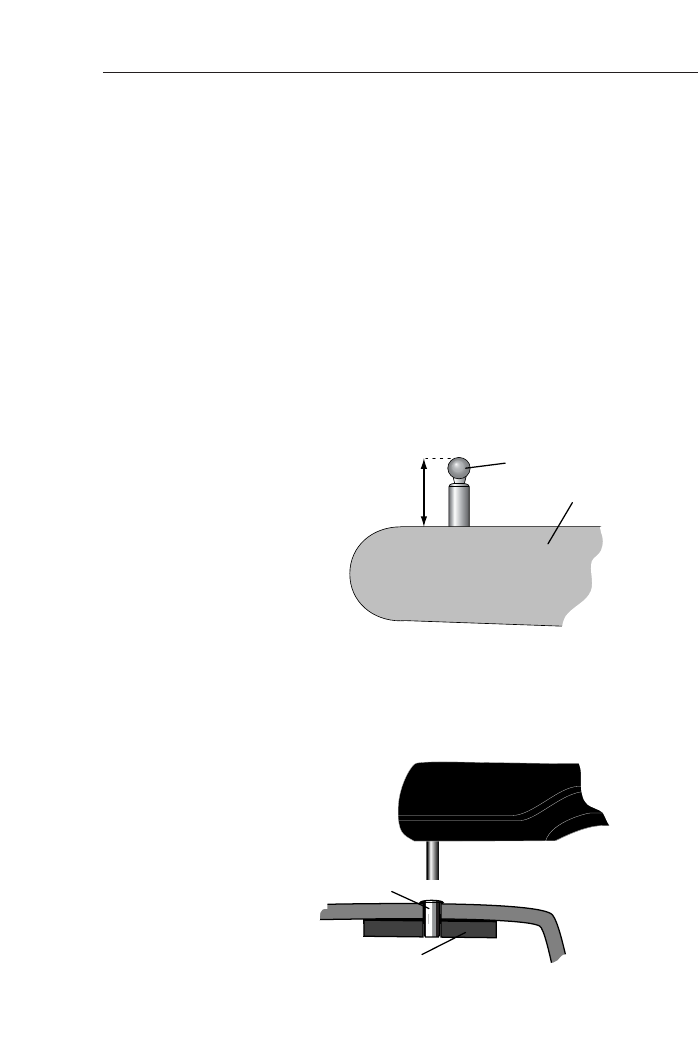

Fig 5.3 - Fitting the tillerpin

Note Due to the high loads exerted, do not fit the Tillerpilot to the

mounting cup and pin until the adhesive has completely set.

Fig 5.4 - Fitting the mounting cup
